XAL

LINEAR DOWNLIGHT
INDOOR LIGHTING
090-7L351K0021 090-7L30100

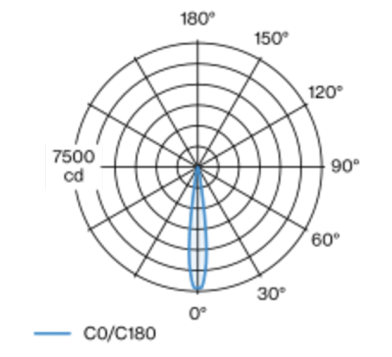

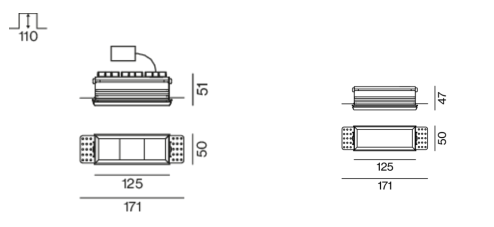

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three spot round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 15°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 1500 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power
11.2W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
632LM
Finishing
CHROME
IP Rating
IP20
Color Rendering
CRI >90
Driver
ON/OFF DRIVER

See more

CUSTOMIZED
CEILING LIGHT
INDOOR LIGHTING

FOR BIG C PATTAYA3 (BIG C STORE)

LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING

Single emission uplights for outdoor application. The super warm LED light source with a flood light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 490 lm, with a 98.0 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP68; the total weight is of 0.2 kg.

The total absorbed power is 5 W. The power supply cable is included and features a 1 m length.

The device features protection class III and can be floor-mounted with an outer casing, code 99650(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.


LIGHTFORMS
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING
WetPlane 40 is an IP-65 rated, linear luminaire with direct distribution that may be suspended, surface or wall mounted. The wall-mount option features an adjustable bracket that can be rotated up to 180˚ to angle the trajectory of the light output.
LIGHTFORMS
WALL LIGHT
INDOOR LIGHTING
Lightplane 1 Wall Grazer is designed with a minimalist profile for wall-mount, single direction (indirect or direct) wall grazing applications. The sleek design allows for integral driver. For dual direction distribution (indirect and direct), see Lightplane 1 Wall Grazer Indirect/Direct.
