Product Detail | Bloxlimited

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

090-7L351E0B21 090-7L30100

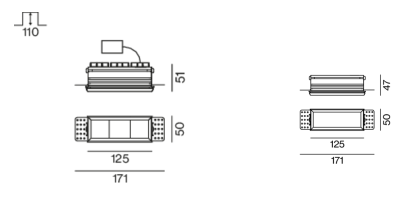

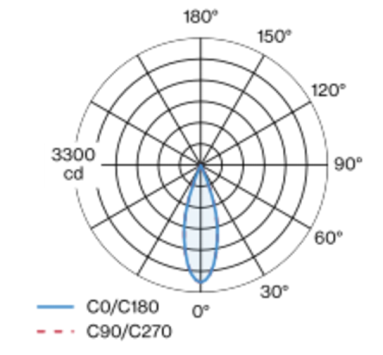

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power

11.2W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

844LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

LED LINEAR

LINEAR LIGHT

INDOOR LIGHTING

ULTIMA linear light available in stand-alone version or 24V track version which fits in the dedicated track system. Various cabling configurations. And mounting possibilities for a full design freedom. The stand-alone version presents ULTIMA in its most compact form as a system. Its cross section of 10 mm x 13 mm (H x W) makes it an ideal candidate for finesse integrations or confined spaces. Ideal for furniture or architectural integration, showcase or display lighting, installation on grid ceilings or as surface mounted.

SPARK

TRACKLIGHT

INDOOR LIGHTING

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request. It come with different types of bean angles.

SIMES

INGROUND LINEAR LIGHT

OUTDOOR LIGHTING

Fixing base and recessing box in extruded anodized EN AW-6060 aluminium housing (copper free) with high corrosion resistance. Mechanical resistance IK 10 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: G. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

SPARK

RECESSED DOWNLIGHT

INDOOR LIGHTING

Recessed fixed downlight made of aluminium housing with white powder coated finish. Inner reflector available in Silver, Chrome black, Mirror chrome and white color finish. Cut-out Ø130mm.
