Product Detail
Home Products Detail

Products

XAL

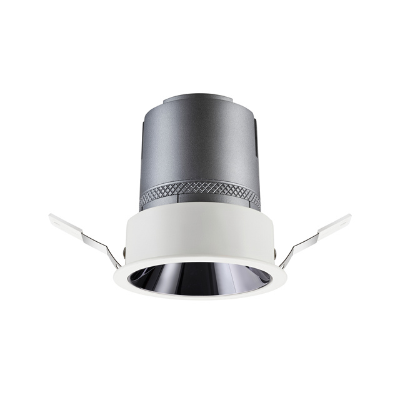

RECESSED SPOTLIGHT
INDOOR LIGHTING
BO 32_049-6120518M 002-90742

Cylindrical spotlight in aluminium; surface black powder coated; 350° rotatable and 90° tiltable; recessed version with trim; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows

Specification

Power
10.6W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
852LM
Finishing
BLACK TRIM / BLACK REFLECTOR
IP Rating
IP20
Color Rendering
CRI90
Driver
ON/OFF DRIVER

See more

IGUZZINI
INGROUND LINEAR LIGHT
OUTDOOR LIGHTING

Ground recessed direct light luminaire designed to use Warm White monochrome LED lamps and a Wall Grazing optic. Extruded aluminium body with die-cast aluminium end caps complete with silicone seals. IP67, IK09 DIMENSION : L1080*W55*H74MM

LIGHTFORMS
RECESSED DOWNLIGHT
INDOOR LIGHTING
This ceiling recessed downlight has high lumen output capability. Available in various finishes and colour temperatures, this light fitting is perfect for retail, workplace and hospitality lighting schemes.
LED LINEAR
SURFACE LINEAR LIGHT
OUTDOOR LIGHTING

Luminaire with 45° adjustable head with an opal encapsulation for decent accent lighting. High lumen output up to 1870lm/m in combination with minimalistic design (25.4mm*31mm) makes Xoolum an efficient product. Polyurethane is utilized in Xoolum to make it more resistant to impact from salt water UV-light and solvents. Xoolum is a two in one fixture thanks to the possibility to mount it with an 45° angle. It can be surface mounted or as pendant fixture.

MEYER
RECESSED DOWNLIGHT
OUTDOOR LIGHTING
Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 2 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 6°, luminous flux: 424 lm, wattage: 6 W, delivered lumens 71 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,009 m², dimensions: Ø 100 mm, width 80 mm, weight 1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
