WIBRE

UNDERWATER LIGHT

OUTDOOR LIGHTING

4.0086.00.12

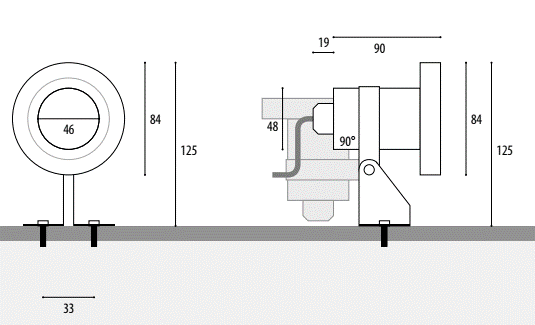

Protection class IP68 – up to 3m water deptp. Entirely made of stainless steel 316Ti 1.4571. Mounting foot adjustable through 90°. POW-LED cold white, warm white, neutral white. POW-LED clored. POW-LED RGB. operating mode: constant current. Low voltage halogen QR-CB51 ES 12 V-AC. High voltage QPAR16. Cable gland PG11, marine grade 316Ti stainless steel. Temperature-resistant silicon seal. Toughened safety glass. Supplied with light source and cable (3 m) already connected

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

750LM

Finishing

STAINLESS STEEL

IP Rating

IP69

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

BEGA

BOLLARD

OUTDOOR LIGHTING

Bollard with single sided light output and flat beam light distribution. The light is directed downwards and is shielded above the horizontal. For broad spread and uniform illumination of surfaces and paths.Luminaire made of aluminium profile, aluminium alloy, aluminium and stainless steel. IP65,IK08. DIMENSION:(W)340x(H)400x(D)100mm.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.510 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99761 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

DALITEK

CONTROL SYSTEM

220V ± 10% 50Hz Single phase 20A. Output: 4 channels of 5A output trailing edge phase cut control (not applicable to inductor transformer dimming). Maximum total load: 20A. Control input: 1 × RS485 network serial port input; 1 × AUX dry contact input. Internal control: Build in programmable logic controller. Network DC power: 90mA DC12V. Presets scenes: 96 (no loss of information due to power failure)
