APEX

SURFACE TRACKLIGHT
INDOOR LIGHTING

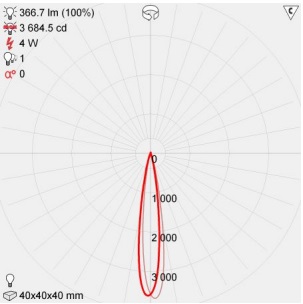

TARA BIG SPOT_TR203

Mini track spotlight made of die cast aluminium housing body, DC24V fixture come with different mounting recessed or surface. Available beam angle from 15°, 25° and 60° and various of color temperature 2700K to 5700K. Suitable for cabinet light and display rack. IP20.

Specification

Power
4W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
360LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI>90
Driver
DALI Driver

See more

LUCE & LIGHT
FLOODLIGHT
OUTDOOR LIGHTING

Flood light luminaire body and bracket made of low-copper-content die-cast aluminium alloy EN AB 47100 for excellent resistance to corrosion. Anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. The ingress Ingress protection degree is IP66,IK09. DIMENSIONS: Ø230x337x137 mm.

LED LINEAR
INGROUND LINEAR LIGHT
OUTDOOR LIGHTING

24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

WE-EF
SPOTLIGHT
OUTDOOR LIGHTING
IP66. IK07. Marine-grade, all aluminium construction. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two cable entries. Mains voltage versions, ON-OFF Class I. Integral EC electronic converter. 24VDC low voltage versions, ON-OFF Class III. DALI (only 4W available) Class I. Knuckle permits 340° rotation, forward tilt 73° and backward tilt 90°. Remote 24VDC power supply to be ordered separately.Optical accessories are factory-installed. To be specified at time of ordering.

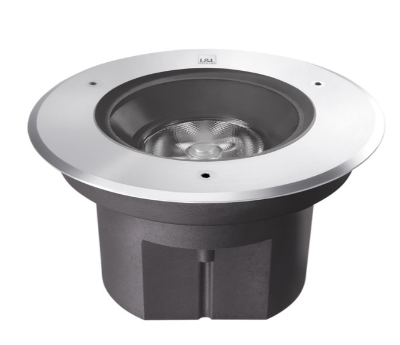

LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING
Single emission uplights for outdoor application. The warm white LED light source with a narrow spot light distribution is composed of 1 powerled LEDs. The luminaire body is made of aluminium 6026 and features a anodised aluminum finish, processed by means of 20 µm anodizing. The ingress protection degree is IP67, IK09.
