SIMES

Luminaire made of copper and stainless steel, Opal glass with screw neck. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 3 fixing holes ø 8.5 mm. Angle 120° · Pitch circle ø 100 mm, 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Plug connection. Connecting terminal 2.5@ Earth conductor connection LED power supply unit 220-240 V x 0/50-60 Hz, DC 176-264 V, DC Start ≥ 198 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, Impact strength IK03. Protection against mechanical impacts < 0.35 joule, r – Safety mark, c – Conformity mark.

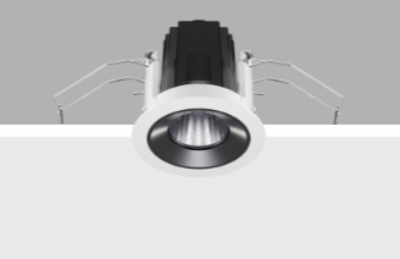

Flush mount installation on false ceilings of thickness 12.5 to 25 mm for Minimal versions (without perimeter flap) or 1 to 25 mm for Frame versions (with flap) using steel wire springs. Frame and heat sink in die-cast aluminium. Reflector in metallic-finish thermoplastic material with scratch protection for excellent lighting efficiency and visual comfort. Controlled luminance emissions, UGR<13 comfort and UGR<10 super comfort versions. Available with on-off wiring and dimmable versions. The minimum installation space dimensions are listed in the instruction catalogue.

The DICE On surface-mounted luminaires enclose an almost floating cylinder, enabling unique and unusual lighting concepts. The square outer shape literally merges with the cylindrical inner shape, and the ability to shape both the outer case, the outer cylinder and the inner Korona frame in one of the 25+5 PROLICHT colours creates endless possibilities for creatively integrating this unique spotlight into a spatial concept or to set conscious contrasts.

Dot designed to be integrated in new or retrofitted handrails. Suitable for outdoor: IP66, IK10, and anti-vandalism. Flat and curved types. 3 beam angles: 60o, 120o and 90o (asymmetric). Luminous efficiency: 100 lm/W. 316 stainless steel unibody dot. Polycarbonate lens. Accessories: Installation tool and M16 Drill jig equipment.
