Products

LINEALIGHT

INGROUND FOOT LIGHT
OUTDOOR LIGHTING
ALCOR_R1_97354W18

Single emission uplights for outdoor application. The warm white LEDlight source with a radial mono-directional emission light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 199 lm, with a 132.7 lm/W nominal luminous efficacy. The device body is made of aisi 316l steel and features a steel finish, processed by means of brushing. The ingress protection degree is IP67,IK10.

Specification

Power
1.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
15LM
Finishing
STAINLESS STEEL
IP Rating
IP67
Color Rendering
CRI>80
Driver
ON/OFF DRIVER

See more

CDN LIGHTING
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Fixed and adjustable in one; When tilting at any angle, patented spherical shielding design helps prevent light leak and gap. Special moving gear tilt design provides stabilized torque for accurate tilt with sound and force feedback when rotating. Besides, Bach 5s series have pull ring equipped for easy maintenance and internal angle mark for accurate aiming. Professional optics, precise and round light spot.

NEKO
CEILING LIGHT
INDOOR LIGHTING

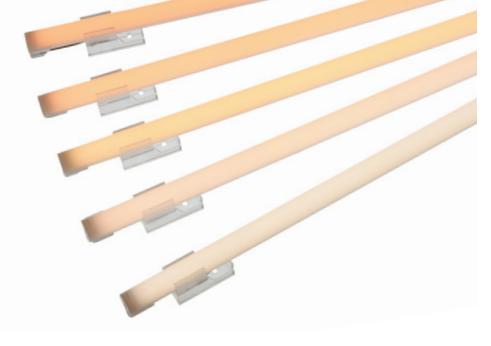

Ceiling mounted FUSION Linear profile with General Light (GL1200) insert and ON-OFF driver; white profile channel (RAL 9016); LED 22W; measurement 1200mm x 50mm; CCT 3000K with an LED Output of 3100lm; high colour rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient SAMSUNG LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work; degree of housing protection according to DIN EN 60529 (IP20)
WE-EF
WALL LIGHT
OUTDOOR LIGHTING
Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Luminaire can be mounted for up or down lighting.
BEGA
FLOODLIGHT
OUTDOOR LIGHTING

Floodlight made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology Clear safety glass silicone gasket. Protection class IP 67 , IK 10. DIMENSION: Width 500mm, Height 530mm and Depth 310mm.
