MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

8 885 146 049

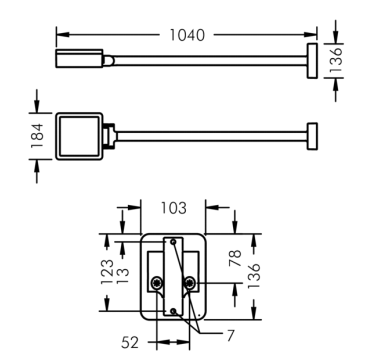

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, wall box: 2 drilled holes Ø 7 mm, spacing 110 mm, cable entry 7 – 10 mm, for recessed or surface mounted cable, tilt range: 200°, cable gland: M20, connecting terminal: 3 pole, highly efficient reflector, integral driver (AC/DC), CRI > 85, 2 SCDM, service life L90/B10 > 50.000 h, luminous flux: 2550 lm, wattage: 26 W, delivered lumens 98 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,035 m², dimensions (L×H×W): 184 × 70 × 184 mm, weight 3.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power

26W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2550LM

Finishing

BLACK

IP Rating

IP67

Color Rendering

CRI>85

Driver

ON/OFF DRIVER

XAL

RECESSED DOWNLIGHT

INDOOR LIGHTING

Recessed downlight made of die-cast aluminium housing. Round installation housing without tools in mounting set due to patented ball catch system. Suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows.

OSRAM

LINEAR LIGHT

OUTDOOR LIGHTING

Allegro Media Tube® Lite fits into any wall, façade or media lighting application with tight installation requirements, while the wide beam angle output and 10-pixels-per-meter ensures a smooth illumination experience. Featuring auto addressing and quick lock connectivity, this greatly simplifies the lighting installation for building façades, media applications, bridges and more. Dimensions (W x H) : 24 x 40mm, 32.6 x 68mm.

XAL

SURFACE MOUNT ADJ LIGHT

INDOOR LIGHTING

Rectangular surface mounted multi-downlight made of aluminium; luminaire housing can be attached to mounting plate without tools by interlock; converter integrated into luminaire housing; surface traffic white powder coated; equipped with four medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; Reflector chrome; UGR ≤ 10.
