LINEALIGHT

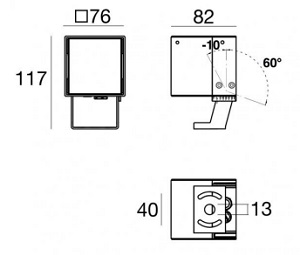

potlight designed to use LED lamps and a Medium optic. The optical assembly and base is made of EN1706AC 46100LF aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance. 5 mm thick tempered sodium-calcium closing glass. Double adjustability allows a 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane. Mechanical aiming locks for rotation on both the vertical axis and horizontal plane. IP66,IK07.

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology Clear safety glass Silicone gasket Optical silicone lens · BEGA Hybrid Optics® Reflector surface made of pure aluminium Rotation range of floodlight 350°. IK09 Symmetrical wide beam light distribution Half beam angle 64° By changing the diffuser lense it is possible to alter the symmetrical light distribution into a flat beam light distribution. Luminaire data for the light planning program DIALux for outdoor lighting, street lighting and indoor lighting. The ingress protection degree is IP65,IK09.

Single emission uplights for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.5 kg. The power supply cable is included and features a 1 m length. The device features protection class III and can be floor-mounted with an outer casing, code 99856 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
