Product Detail
Home Products Detail

Products

MEYER

POLE LIGHT
OUTDOOR LIGHTING
8 905 246 059

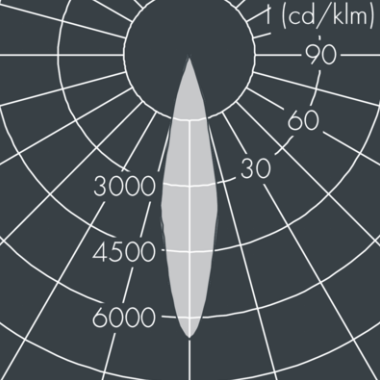

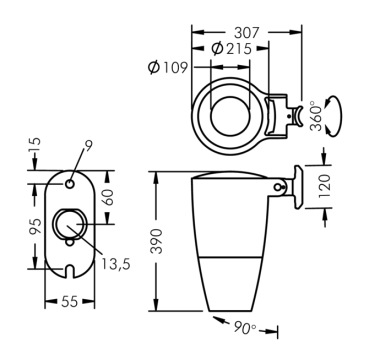

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 29°, luminous flux: 1066 lm, wattage: 55 W, delivered lumens 19 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

Specification

Power
55W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1066LM
Finishing
BLACK
IP Rating
IP65
Color Rendering
CRI>80
Driver
ON/OFF DRIVER

See more

WE-EF
SPOTLIGHT
OUTDOOR LIGHTING

Electronic control gear in separate gear box (constant current), prewired

LIGHTFORMS
SURFACE TRACKLIGHT
INDOOR LIGHTING
Lightplane 1 H features a 25mm linear channel and delivers both direct and indirect lighting. This small channel allows for minimal linear lighting in suspended, wall and surface (direct only) applications. Driver is REMOTE.
LED LINEAR
SURFACE LINEAR LIGHT
OUTDOOR LIGHTING

24 V, IP67 protected and IK10 certied, linear surface-mounted LED luminaire with small form factor. Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption), chemical stability against urban gazes and protection against abrasion. Extruded H-shaped aluminum prole in white, gray or black color with connector(s) or open-ended cable(s) (length of 2 m), with included mounting accessory of choice. The translucent end caps enabl

IGUZZINI
SPOTLIGHT
OUTDOOR LIGHTING

Spotlight designed to use LED lamps and a Flood optic. The optical assembly and base is made of EN1706AC 46100LF aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance.
