MEYER
UP/DOWN WALL LIGHT
OUTDOOR LIGHTING
8 706 146 009
Housing made corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized
coating process, Colour: black ral 7021, all exterior parts are stainless steel, UV stabilised, impact‑resistant polycarbonate

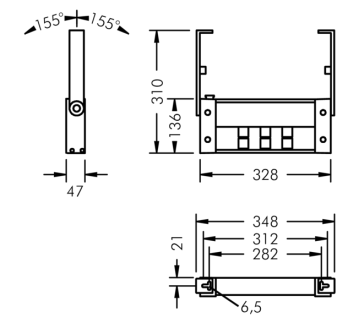

cover , silicon gasket, with 4 stainless steel screws, wall arm: 2 drilled holes Ø 6,5 mm, spacing 282 mm, tilt range: 310°,

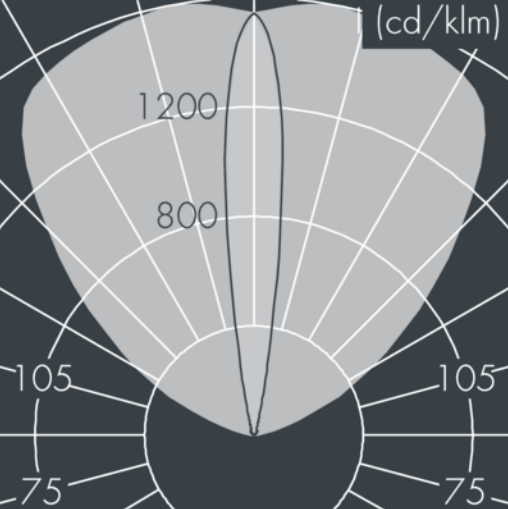

cable gland: PG11, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 15° / 103°, luminous flux: 1175 lm, wattage: 15 W, delivered lumens 78 lm/W, protection type IP65, protection class I, impact resistance IK10, windage area 0,04 m², dimensions (L×H×W): 328 × 47 × 135 mm, weight 3.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral,
db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high
ambient temperature.
Specification
- Power
- 15W
- Color Temperature
- 3000K
- Light Source Type
- LED
- Lumen Output
- 1175LM
- Finishing
- BLACK
- IP Rating
- IP65
- Color Rendering
- CRI>80
- Driver
- ON/OFF DRIVER
