Product Detail | Bloxlimited

MEYER

WALL LIGHT

OUTDOOR LIGHTING

8 364 146 099

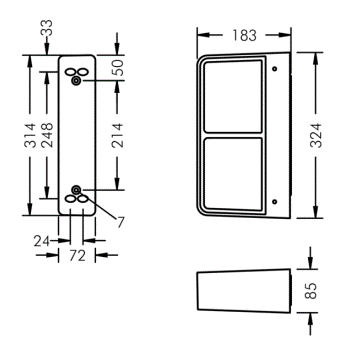

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered high effiency safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, wall box with 2 stainless steel screws, wall box: 2 drilled holes Ø 7 mm, spacing 214 mm, cable gland: 4x Ø 7‑10 mm, connecting terminal: 3 pole, highly efficient reflector, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L80/B20 > 50.000 h, luminous flux: 4176 lm, wattage: 37 W, delivered lumens 113 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,057 m², dimensions (L×H×W): 324 × 85 × 183 mm, weight 3.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power

37W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

4176LM

Finishing

DIE-CAST ALUMINUM

IP Rating

IP65

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 arrayled LEDs. The device body is made of aluminium and features a embossed black ral 9005 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.57 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 120 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

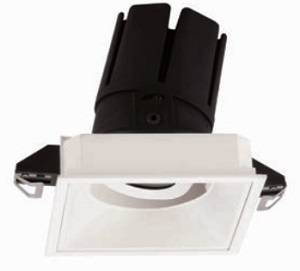

Recessed adjustable square downlight, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

DELTALIGHT

RECESSED MAGNETIC TRACK LINEAR

INDOOR LIGHTING

Light modules can easily be positioned and repositioned, thanks to the magnetic connection between module and profile. This allows for an easy adaptation between light and room setting.Magnetic modules to be used with the SPLITLINE and SHIFTLINE profiles.Apart from personal dimming preferences, the light within the magnetic profiles can also be controlled by sensors, based on daylight or presence detection.
