MEYER

SPOTLIGHT

OUTDOOR LIGHTING

8 364 146 089

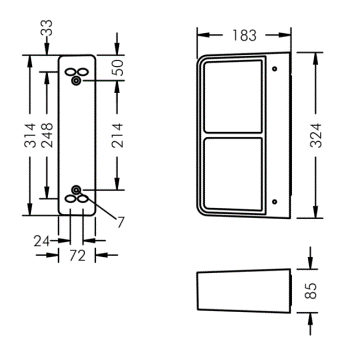

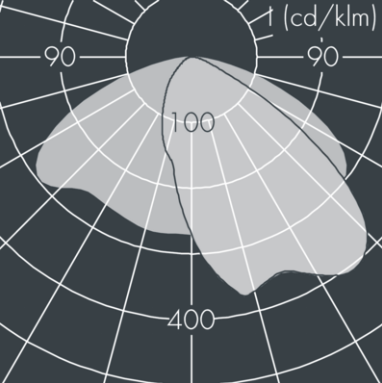

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered high effiency safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, wall box with 2 stainless steel screws, wall box: 2 drilled holes Ø 7 mm, spacing 214 mm, cable gland: 4x Ø 7‑10 mm, connecting terminal: 3 pole, highly efficient reflector, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 62° / 142°, luminous flux: 3219 lm, wattage: 36 W, delivered lumens 89 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,057 m², dimensions (L×H×W): 324 × 85 × 183 mm, weight 3.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power

36W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

3219LM

Finishing

DIE-CAST ALUMINUM

IP Rating

IP65

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

MEYER

SURFACE SPOTLIGHT

OUTDOOR LIGHTING

All exterior parts are stainless steel, tempered high efficiency safety glass, anti‐reflective coating from 1 side, silicon gasket, with 2 stainless steel screws, mounting bracket.Tilt range: 185°, highly efficient faceted rotationally symmetrical reflector, Constant current control (48 V DC), CRI 81, Beam angle (fwhm): 6°, luminous flux: 528 lm, wattage: 9 W, delivered lumens 59 lm/W, IP65,IK08,weight 0.8 kg

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

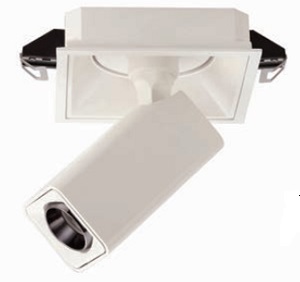

Recessed adjustable rectangular downlight come with snoot, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 490 lm, with a 122.5 lm/W nominal luminous efficacy. The device body is made of plaster and features a white finish; the diffuser is made of polyamide. The ingress protection degree is IP20; the total weight is of 0.25 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 4 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 85 x 85 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 36 powerled LEDs. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 7.4 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.1 m length. The device features protection class III and can be ceiling-mounted, with a 1432 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
