The luminaire is made of high light transmittance, food-grade environmental silicone material, integrated extrusion molding technology, High protection level. Unique optical light distribution structure design, uniform lighting surface and no shadow. Compared with the traditional neon tube or PVC guardrail tube, the silicone material has good flexibility, the simple and stylish appearance, which is exquisite and unique. Resistance to saline solutions, acids & alkali, corrosive gases and UV.

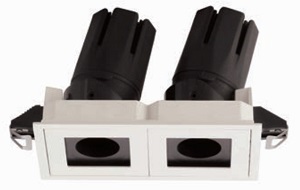

Trimless 38mm aluminium luminaire for 8-20mm plasterboard ceilings. Perforated edges for seamless install, tool-free light inset, HPO or asymmetrical lens. High-efficiency LEDs (3000K/4000K, CRI ≥ 80, ≤3 MacAdam, 90% flux retention at 50,000h). IP20, PC I, IEC 62471 RG0. Non-dimmable or DALI-2.

Outdoor Surface mount wall light made of die-cast aluminium housing and in powder coated black finish. Silicon rubber gasket and external driver. Suitable for backyard, balcony, garden and outdoor wall application.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 5°, luminous flux: 2855 lm, wattage: 46 W, delivered lumens 62 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,027 m², dimensions: Ø 194 mm, width 124 mm, weight 2.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
