MEYER

FLOODLIGHT
OUTDOOR LIGHTING
8 263 046 049

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, 2 drilled holes Ø 7 mm, spacing 30 ‑ 35 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 25°, luminous flux: 1729 lm, wattage: 23 W, delivered lumens 75 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,013 m², dimensions (L×H×W): 126 × 97 × 126 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power
22.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1729LM
Finishing
DIE-CAST ALUMINUM
IP Rating
IP65
Color Rendering
CRI>80
Driver
ON/OFF DRIVER

See more

UNILAMP
UNDERWATER LIGHT
OUTDOOR LIGHTING

ATOM is a ground recess indicator light suitable for above water and under water light application. ATOM has been designed and manufactured at highest attribute. Utilizing CNC lathed stainless steel body presented exceptional aesthetic as well as sleek tough feeling. LED chips and lenses are from world renowned manufacturers. GFR polymer recess kit allows it to be installed in most extreme environment. Ensuring integrity of manufacture ATOM is supplied with a factory fitted pre-wired cable for ease of installation. The Anti-Humidity kit eliminate condensation inside the housing and prolong the life time of the luminaire. An optional IP68 connectors is recommended as an accessory for trouble free installation.

LINEALIGHT
PENDANT
INDOOR LIGHTING
Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 576 topled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 11,5 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 5 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
SPARK
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING

Suspended Pendant light made of aluminium housing and come with 1meter suspension rod and mounting accessories. Color finish have white or black. Suitable for residential, office and retail application.

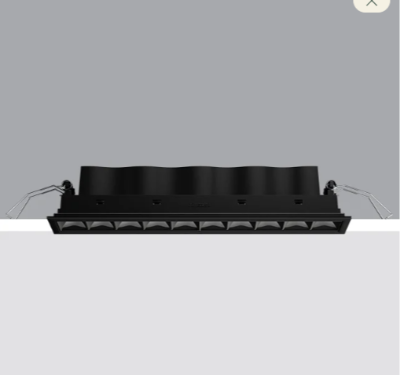

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.93 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 126 x 126 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
