The in-ground uplighter range is designed to fulfill the demands of sophisticated lighting projects. The luminaires combine all crucial product advantages precise light distributions, perfect glare control, adjustable reflectors and shallow recess depth. Uplight 220 and 260 are equipped with the innovative Heat Slide mechanism which allows the optical system to be adjusted and aimed whilst the LED module remains connected to the luminaire housing. Thus efficient heat dissipation and a long lifetime of the LED is achieved. The luminaires are now available with innovative wall washer optics for uniform illuminaition from the bottom to the top of the facade.

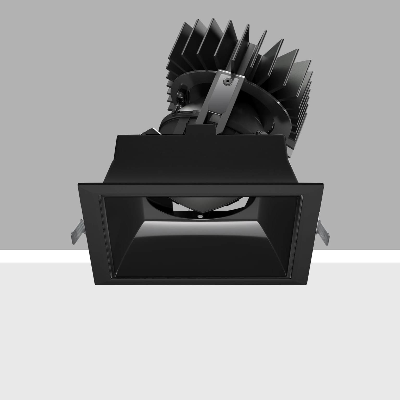

Adjustable optic, recessed luminaire for a Warm White LED lamp with a high color rendering index. Passive heat dissipation system. The adjustable body can turn in a set-back position in relation to the flush-mounted recessed housing to ensure precise lighting that is extremely comfortable and reduces direct glare significantly. Internal rotation of 358° and a tilting movement of 35° with mechanical locking systems for both movements. Fixed recessed luminaire in die-cast aluminium with a perimete

SPK95C is light weight, compact and easy to conceal. High efficiency LED manufacturing achieves good quality and aesthetic appearance, energy saving and high performance. Due to the long life of the light source, the light can be successfully used in hard to access areas and high places such as production sites, warehouse, sports centers, carpark, facades and industrial building etc. IP66

DIMENSION : 107mm(L) x97mm（W）x 102mm (H)

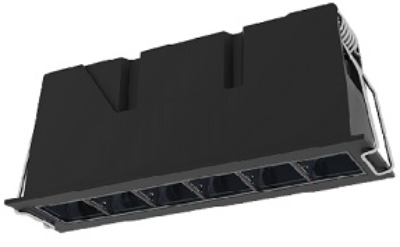

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The power supply cable is include and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98673(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
