LUCE & LIGHT

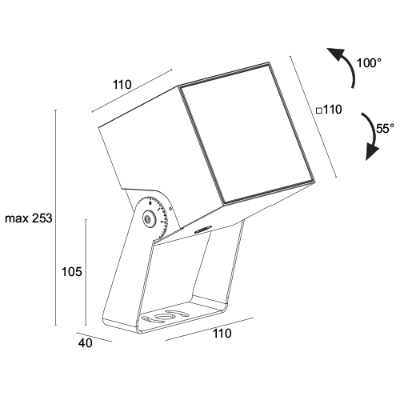

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket: 2 drilled holes Ø 7 mm, spacing 30‑40 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, highly efficient faceted rotationally symmetrical reflector, integral driver (AC/DC), CRI > 85, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 84°, luminous flux: 2418 lm, wattage: 27 W, delivered lumens 90 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,016 m², dimensions: Ø 148 mm, width 100 mm, weight 1.7 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Rigid Wallwaher luminaire come with 3 different length, 348mm, 515mm and 1015mm. Various wattage and beam angle available. IP66

Single emission ceiling lights for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating The device body is made of aluminium 6060 and features a 5g 9005 black finish, processed by means of powder coating; the diffuser is made of extra clear glass. The ingress protection degree is IP40; the total weight is of 0.50 kg. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Surface mounted downlight luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.
