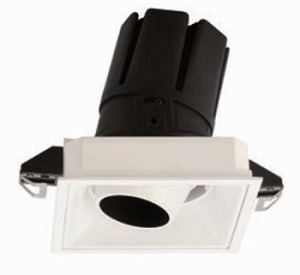

PROLICHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

BIONIQ 220-1509 ..03-30-00-03-11

BIONIQ has been developed for lighting designers and architects who demand the highest standards in technology, design and precision. State‑of‑the‑art LED technology combined with lens‑based optics delivers exceptionally controlled, high‑quality light. High luminous efficacy, beam angles ranging from Super Spot to Very Wide Flood, 30° tiltability and 350° rotation provide maximum creative freedom. IP65 as standard, tool‑free exchange of lenses and accessories and excellent glare control.

Specification

Power

13W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

653LM

Finishing

WHITE

IP Rating

IP44

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

MEYER

INGROUND UPLIGHT

OUTDOOR LIGHTING

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector, lockable, tilt range: 0‑15, 0,8 m cable H07RN‑F3G1,5, integral control gear, CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 8° / 47°, luminous flux: 369 lm, wattage: 5 W, delivered lumens 72 lm/W, protection type IP67, protection class I, impact resistance IK10, dimensions: Ø 200 mm, width 124 mm, weight 3.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

SPARK

UP/DOWN WALL LIGHT

INDOOR LIGHTING

Indoor indirect wall light made of aluminium housing. Surface mounting come with various color temperature from 2700K to 6000K upon request. Housing finish available black, silver and grey and 3 different length 250mm, 450mm and 600mm.

LINEALIGHT

PENDANT

INDOOR LIGHTING

Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 476 stripled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 2.3 kg. The power supply cable is included and features a 4.85 m length. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
