MEYER

FLOODLIGHT

OUTDOOR LIGHTING

8 991 046 059

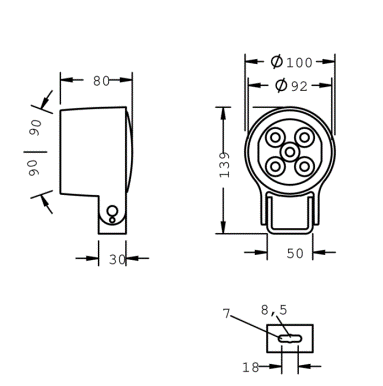

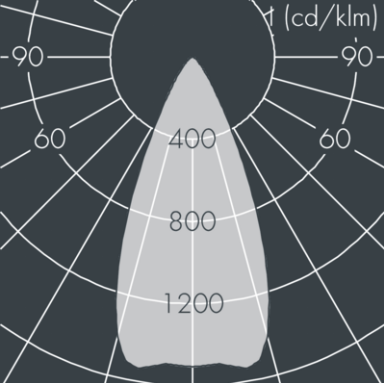

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 2 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 46°, luminous flux: 370 lm, wattage: 6 W, delivered lumens 62 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,009 m², dimensions: Ø 100 mm, width 80 mm, weight 1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

370LM

Finishing

DIE-CAST ALUMINUM

IP Rating

IP67

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

SPARK

WALLWASHER

OUTDOOR LIGHTING

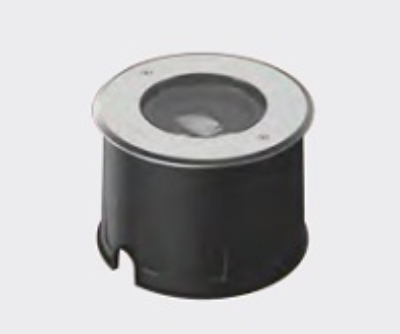

Brand-new design with tilt angle of 20°, 30° and 40° for different wall-washer application as new solution of inground lighting. Effectively improve the light utilization rate and achieve a highly uniform wall washing effect, and meet the designers' free imagination and more solutions. The whole series adopts imported silicone sealing ring to effectively isolate the invasion of water and dust.

XAL

SPOTLIGHT

INDOOR LIGHTING

LED LINEAR

SURFACE LINEAR LIGHT

OUTDOOR LIGHTING

XOOLUX NANO is a minimalistic and flat luminaire designed primarily for grazing applications. The updated IP classification now stretch to IP67, meaning water resistance and suitable for outdoor use. Nano lens optics allow precise control of the light distribution while maximizing lumen output and minimalizing color over angle for crisp and homogeneous grazing. Different light distributions makes Xoolux Nano the goto product for grazing as well as delicate flooding applications. Further improving flexibility is achieved through the use of mounting clips, enabling tilt angles every 5° increments from 0° to 45°.
