Specification

Power

40W

Color Temperature

4000K

Light Source Type

LED

Lumen Output

2670LM

Finishing

Traxon Gray

IP Rating

IP66

Color Rendering

CRI>90

Driver

DMX 512

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

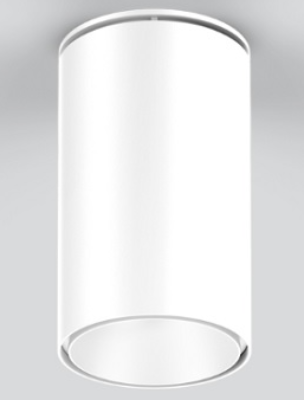

Single emission ceiling lights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 36 powerled LEDs. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 7.4 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.1 m length. The device features protection class III and can be ceiling-mounted, with a 1432 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

RGBW Colour Changer. IP67. Class I. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. 20° tiltable and 355° rotatable. LED circuit board with WEEF Colour Boost Technology. DMX Interface. For other control interface options to suit specific project requirements, contact WEEF. Luminaire installation blockout and sealable junction box included in supply

LUCI

LED STRIP

INDOOR LIGHTING

LED lumnaire 2 types of LED pitch (7.1 or 17.8mm) for profile and cove lighting. The 5 wattage options, ranging from 2 to 15W/m, utilize the same LED package to ensure consistent CCT High efficient LED package achieving up to 185 lm/W.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.128 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 56 mm diameter hole (in plasterboard) with an outer casing, code 83063 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
