MEYER

INGROUND UPLIGHT
OUTDOOR LIGHTING
8 663 016 019

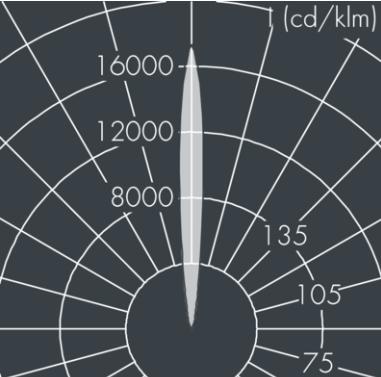

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector, lockable, tilt range: 0‑20°, lockable, with Heatslide mechanism for optimal heat dissipation, 0,8 m cable H07RN‑F3G1, integral driver (AC), CRI > 85, max 3 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 9°, luminous flux: 1628 lm, wattage: 19 W, delivered lumens 86 lm/W, protection type IP68, protection class I, impact resistance IK10, dimensions: Ø 220 mm, width 152 mm, weight 3.9 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

Specification

Power
19W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1628LM
Finishing
DIE-CAST ALUMINUM
IP Rating
IP68
Color Rendering
CRI>80
Driver
ON/OFF DRIVER

See more

LINEALIGHT
SURFACE TRACKLIGHT
INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.612 kg. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

XAL
SPOTLIGHT
INDOOR LIGHTING

Surface mounted spotlight made of aluminium; 1 lamp; cylindrical spotlight head; surface jet black powder coated; 350° rotatable and 90° tiltable; surface mounted housing in aluminium incl. converter; mounting plate with pre-assembled converter unit can be pre-mounted; luminaire housing can be attached without tools by interlock; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows;

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Oval round shape twin head recessed adjustable downlight, aluminium housing. Come with 3 different beam degree 15°, 24° and 36°. IP44

LIGHTFORMS
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING
Lightplane 6 is a large, linear luminaire that provides direct or indirect illumination in suspended, wall and surface-mount models. The luminaire features an integral driver along with a high impact satin diffuser. Available with several LED lamping options including multiple outputs, CCTs, tunable white, and color-changing RGB+ White.
