IGUZZINI

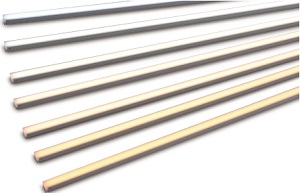

Office linear light system offering high efficiency 142Lm/w, microprismatic lens technology keeps glare to a min UGR<19, ensuring a comfortable visual experience. The lights feature DALI 2.0 DT8 for easy dimming and CCT tunable from 2700K - 6500K. The fixture connect seamlessly for a uniform lighting effect and the prewired trunking rail with 11 cables simplifies installation and maintenance.

Optics available 45°, 50° and 60°.

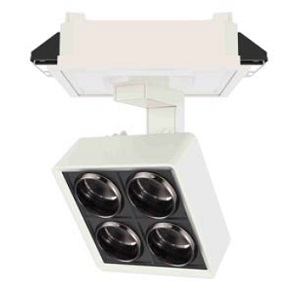

Adjustable LED projector with four (4) heads, a yoke allows a 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane. Each head have a pivot point that also allow 90° tilting relative to the horizontal plane. Mechanical aiming locks for both for rotation about the vertical axis and tilting relative to the horizontal plane. 12 pieces matching adapter / clamp for mounting on a pipe about 5 cm in diameter pro lamp and mounting bracket.

DIMENSION : L278*W401*H230MM

The Alphabet of Light system is a language of light that continues to grow with new curved elements, developing with increasing freedom in spaces. It is a fundamental principle that generates an open system through a few basic modules. Thanks to precise geometric proportions, these modules can be combined to construct infinite structures of light, whether essential or more complex, linear or curvilinear, all environmentally certifiable with EPD (Environmental Product Declaration). The concept by BIG combines with Artemide's optoelectronic expertise to define an innovative construction principle and provide a continuous and comfortable light. It is a minimal presence that encompasses not only highly innovative optoelectronic and patented mechanical components but also management innovations. The system is controllable through the Artemide App to create freedom not only in designing geometries but also in defining dynamic performances, programmable or modifiable in real time.

Trimless round (Easy Installation) recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; System Power 13W; measurement Ø71mm; ceiling cutout of Ø75mm with a trimless mounting; luminaire's weight is approximately 220g; CCT 3000K with a System luminous flux of 550lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP44 (LED Module IP54) on the visible part of the product once installed; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
