XAL

The Logic stands for a complete range of water and shock resistant lighting fixtures. Thanks to the use of powerful led arrays, these wall and floor recessed fixtures deliver an intense light effect. The effect of the Logic F serves to enhance the architectural character of your project and landscape. Thanks to its multiple reflector options, Logic can be used to accentuate trees or sculptures, but also to uplight facades or large garden features, to create a sense of depth or indicate the right direction along paths and driveways. The choice of installation recessed trim or surface mounted trim and its round or square shape allow you to match look feel with the design of the building. For optimal beam control, the LED module in Logic R OK can be easily tilted up to 30 and rotated over 350, while keeping its IP65 label. In the same family, Logic W can be used as guidance light, built into the wall.

Direct light luminaire, designed to use monochrome LED lamps. Ceiling- and wall-mounted. Consists of a body and supports for installation (to be ordered separately). Extruded aluminium body, with zamak die-cast end caps complete with silicone gaskets. Coated with liquid acrylic paint with a high level of weather and UV ray resistance. The top of the optical assembly is closed by a 3 mm thick transparent glass screen, fixed with silicone. Complete with multi-LED power plate in Warm White with 24V dc electronic circuit (ballast to be ordered separately); 24V smart driver allowing constant light flow emission despite variations in the input voltage (from 30V dc to 16V dc). Fitted with satin-finish polycarbonate film and optics with plastic (methacrylate) lens for 30° FLOOD lighting. All external screws used are made of A2 stainless steel. The luminaire technical characteristics conform to EN 60598-1 standards and particular requirements.

Single emission submerged for outdoor application. The warm white LED light source with a elliptic medium flood light distribution is composed of 3 powerled LEDs. The device body is made of stainless steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,IK10.

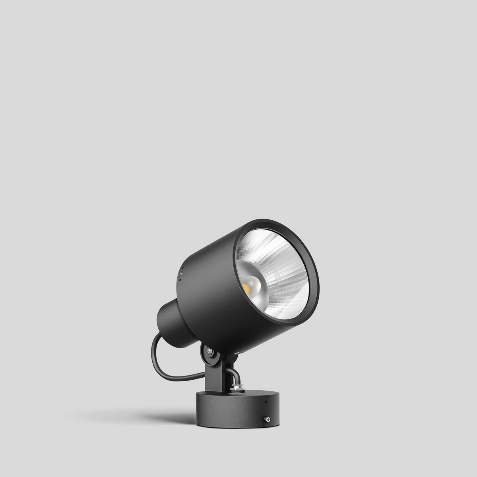

Cylindrical semi-recessed spotlight made of aluminium; surface black/black (housing/light inset); 360° rotatable and 20° tiltable; luminaire housing can be attached to mounting plate without tools by interlock; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows
