XAL

RECESSED DOWNLIGHT

INDOOR LIGHTING

SASSO 60 RD_048 2602011F

Round recessed downlight in die-cast aluminium housing, surface in jet black finishes. 360° rotatable and 30° tiltable. Suitable for ceiling thickness of 2-25 mm, passive cooling of the LEDs through improved heat sink geometry with COB (Chip on Board) technology for maximum efficiency. No appearance of multiple shadows. IP40

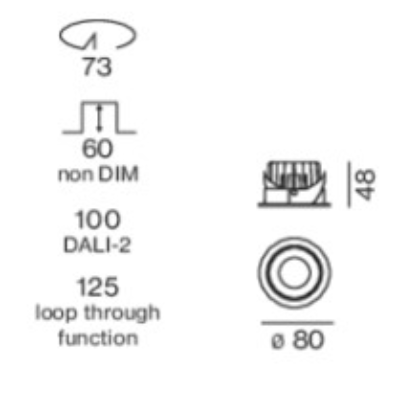

DIMENSION : Ø80*H48MM

Specification

Power

12.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

889LM

Finishing

BLACK

IP Rating

IP44

Color Rendering

CRI 90

Driver

DALI DRIVER

SPARK

TRACKLIGHT

INDOOR LIGHTING

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request. It come with different types of bean angles.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three wide flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 72°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. DALI-2 converter; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

LUTRON

CONTROL SYSTEM

The (W)QSPS-DH-1-75 QS link power supply providesup to 75 Power Draw Units (PDUs) on a QS link. The(W)QSPS-DH-1-75 powers additional compatibleaccessories and devices, allowing them to be addedto a QS system.
