IGUZZINI

LINEAR DOWNLIGHT

INDOOR LIGHTING

LBXS-000075

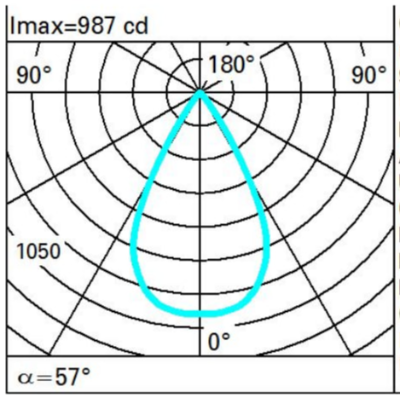

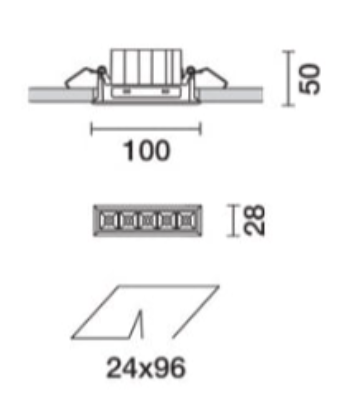

Miniaturized lighting fixture Laser Blade XS Linear optical element with 5 cells (5 LEDs) Recessed lighting fixture with a radiant surface in die-cast zama, complete with springs for installation. Frame version with a perimeter trim. LED Single Chip High Power 2700K LED Color Rendering Index -CRI90- High-definition Opti Beam reflector in metallized thermoplastic material. WIDE FLOOD optics. Black polycarbonate raster with glossy surface (not painted). Product includes a DALI-2 dimmable.

Specification

Power

9.7W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

770lm

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

DALI DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 9 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1611 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.544 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 18 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 113 x 113 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

WE-EF

WALLWASHER

OUTDOOR LIGHTING

Marine-grade, all-aluminium construction. 5CE superior corrosion protection including PCS hardware. PMMA lens. Silicone rubber gaskets. 1.2 m of flexible PVC-free cable. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. DALI interface.

LINEALIGHT

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

Single emission ceiling downlights for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65, IK08.
