XAL

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

UNICO Q1_090-1Q151DBB01

Surface mounted multi-downlight luminaire made of aluminium housing and can be attached to mounting plate without tools by interlock; converter integrated into luminaire housing. Black powder coated finishing equipped with a medium round light element; symmetrical light distribution with precise radiation characteristic.

Specification

Power

5.7W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

467LM

Finishing

BLACK

IP Rating

IP54

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

WIBRE

UNDERWATER LIGHT

OUTDOOR LIGHTING

With a diameter of 150 mm, this very compact recessed spotlight offers professional quality for private pools and water attractions. With up to 2300 lumen, it is a real powerhouse and its stainless steel housing promises the durability required in professional swimming facilities. Four compact LEDs evenly illuminate small and medium-sized pools with white or coloured light. With its small dimensions, the spotlight integrates harmoniously not only into linear but even into organic basin shapes.

MEYER

SPOTLIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket powder coated aluminum with tilt scale: 2 drilled holes Ø 7 mm, spacing 40 ‑ 60 mm, 1 centre hole Ø 21 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 41°, luminous flux: 1483 lm, wattage: 55 W, delivered lumens 27 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

PHOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

he Soft XL recessed Ø80mm luminaire with an elegant small aperture made from machined aluminium with anti-glare deep set sculpted design for high visual comfort giving a soft glowing effect. Available in narrow and medium-light distribution beams. Reduced glare design with unique, elegant small aperture. Flawless finishes available on all components.

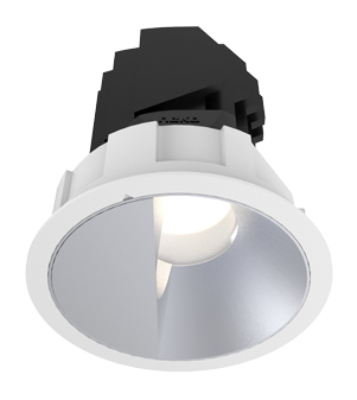

NEKO

WALLWASHER

INDOOR LIGHTING

Round recessed ceiling downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and matt reflector; ON-OFF Driver; LED 25W; measurement Ø162mm; ceiling cutout of Ø150mm with a narrow mounting trim; luminaire's weight is approximately 1550g; CCT 3000K with an LED Output of 2700lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; Wall Washer; lighting perfectly suitable for a wide illumination of wall surfaces to allow homogeneous light distribution; degree of housing protection according to DIN EN 60529 (IP20)
