XAL

RECESSED DOWNLIGHT
INDOOR LIGHTING
SASSO 40_048-2800517F 048-2896317 002-90752

Round recessed spotlight in die-cast aluminium; surface jet black; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 90.

Specification

Power
6.2W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
415LM
Finishing
WHITE TRIM / BLACK REFLECTOR
IP Rating
IP44
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

CDN LIGHTING

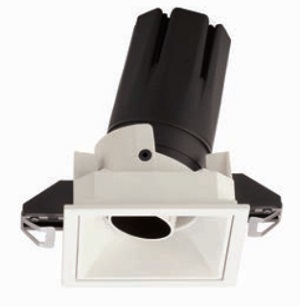

RECESSED DOWNLIGHT
INDOOR LIGHTING


CDN LIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING


WE-EF
INGROUND UPLIGHT
OUTDOOR LIGHTING

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. 20° tiltable and 355° rotatable. 1-10 V analogue dimming or DALI interface available on request. Luminaire installation blockout and sealable junction box included in supply.

LINEALIGHT
WALL LIGHT
INDOOR LIGHTING
Single emission wall lights for indoor application. The warm white LED light source with a adjustable focus light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.92 kg. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
