LINEALIGHT

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

81893W60

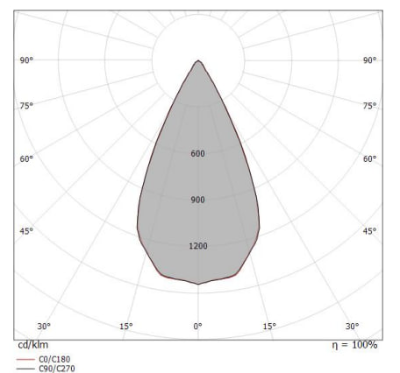

Single emission recessed downlights for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1087 lm, with a 151.0 lm/W nominal luminous efficacy.The device body is made of die-cast aluminium en ab - 46100 and features a black ral9005 matt finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered.

Specification

Power

7.2W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

504lm

Finishing

BLACK

IP Rating

IP67

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

COLORS

RECESSED LINEAR LIGHT

INDOOR LIGHTING

Material：AL6063-T5,spraying surface/anodizing/Coating：Silver anodized(RAL9006),Black(RAL9005),White(RAL9003)/Lighting direction: downward/Length：2500mm/0-2500mm customizable (Other lengths on request)/Application: Indoor/Installation：Recessed/IP grade：IP20/Certification：ROHS Reach/Warranty：5 years

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application.The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.920 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

XAL

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

Luminaire housing made of extruded aluminium profile; light tight final end caps made of aluminium; no visible screws; angular design; surface jet black powder coated; suspended luminaire with 1500mm cable suspension; height adjustment without tools; incl. feed (black); luminaire profile can be pre-mounted; remaining lamp components mounted without tools; LED light inset consisting of highly reflective lacquered aluminium for improved thermal management; light colour 3000 K; ≤ 3 SDCM
