CDN LIGHTING

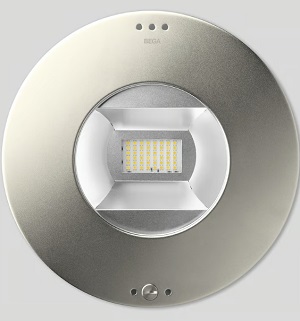

Luminaire made of copper and bronze alloy. Matt safety glass. Mounting plate with 3 fixing holes ø 5.5 mm. Angle 120° · Pitch circle ø 85 mm 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Connecting terminal 2.5@ with plug connection Earth conductor connection, LED power supply unit 220-240 V x 0/50-60 Hz. DC 198-280 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water. Impact strength IK10. Protection against mechanical impacts < 20 joule, r – Safety mark, c – Conformity mark.

Indoor / Outdoor Wall light made of die cast aluminium body, protective powder coated finishing. Silicon rubber gasket and external driver. IP65

DIMENSION : 150*46MM

Square recessed motorized luminaire with retractable light head. Mounting trim and light head are made of cast aluminium, recessed light housing made of painted metal. Moto-Palla In&Out is available in 3 different light head diameters: 66mm, 100mm and 130mm. The luminaire includes brackets for trim installation on ceiling thickness max. 25 mm or trimless installation on ceiling thickness max. 30 mm. Two remote controlled DC motors drive the movements of the fixtures. The fixtures are rotatable horizontally 350° and, tiltable vertically in two directions (0°-10° In, 0°-90° Out). The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.
