CDN LIGHTING

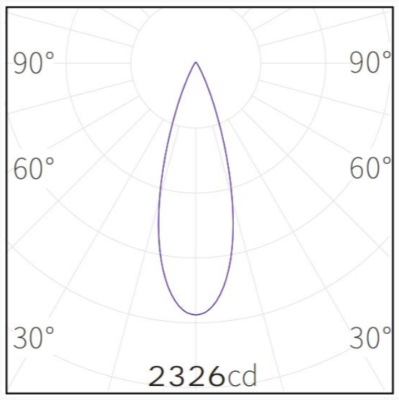

The rimless spot OIKO from the familiy OIKO consists of aluminum-die-cast. With 2 powder coated options 625 colour combinations can be achieved. Stated photometric values correspond to operation by 500 mA; a suitable ballast needs to be sourced separately and is not scope of delivery. Dimming (# 120-0195) depends on the used ballast and may vary. The spot with direct illumination corresponds to protection class SK3 at IP20. ZERO LIGHT LEAKAGE technology guarantees trouble-free use in acoustic ceilings.

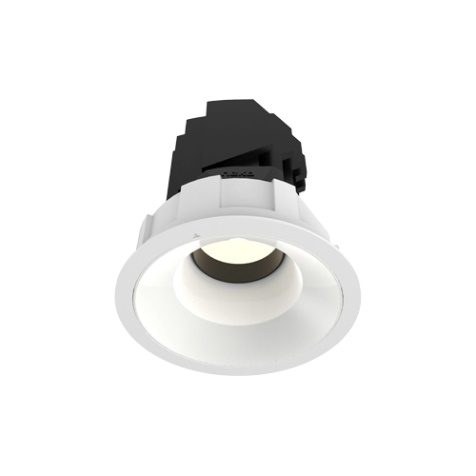

Recessed indoor downlight luminaire available fix and adjustable version, trim and non-trim and 2/4/8/12 spots module. Surface and wallwasher version available in 4 spots module. Various color finishes upon request.

timeless design · round design · Precision reflector for accentuation · Microfaceted, aluminum-coated reflector · highly reflective faceted reflector · aluminum coated for best reflection · passive cooling through optimized heat sink · optional optics: optionally LINEAR SPREAD LENS, SPREAD LENS or HONEYCOMB · powdercoated die-cast body · Concrete installation housing available as accessory. · Snap springs for concrete and hollow walls · Rotatability 350°, pivotability 25°

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted.
