UNILAMP

SPOTLIGHT

OUTDOOR LIGHTING

MEDIUM TUBE_5045-9-3-873-03

TUBE a family of cylindrical sharped wall light, ceiling light and area light. The body components are made from extruded and LM6 aluminium which make them highly corrosion resistant to any extreme environment. TUBE is protected from the ingress of dust and water and are used in both outdoor and indoor environments. Fitted with COB LED in three color temperature from 2700K, 3000K or 4000K with high CRI. TUBE can slove many lighting tasks in modern architectural surrounds and are generally used in illuminating columns and facedes. The pole lights give a great level of downward light with symmetric or asymmetric light distributions.

Specification

Power

20W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1160LM

Finishing

DARK GREY

IP Rating

IP65

Color Rendering

CRI >80

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.192 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

UNILAMP

SPOTLIGHT

OUTDOOR LIGHTING

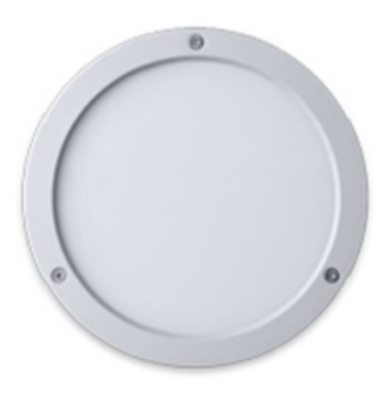

DOT family is a range of small recessed wall luminaires with LED light sources. The glare-free cover enables DOT to be installed where comfortable illumination is required. Fitted with world renowned LED manufacturer DOT is highly efficient with low energy consumption. DOT is available in four different design with interchangeable front covers in both square and round shapes. The very small and shallow housing allow the installation of the fixtures in wall or step that have limited recessing depth. DOT is regularly used to illuminate stairways and pathways where directional low level light is preferred.

FORMALIGHTING

RECESSED DOWNLIGHT

INDOOR LIGHTING

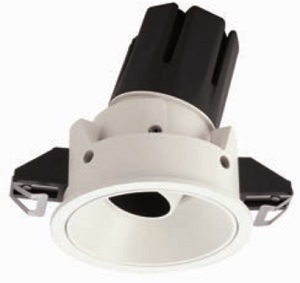

Round or Square mounting trim in cast aluminium with spring for installation mounting on a ceiling thickness of 1-25mm. Luminaire body in cast alluminum. Easy relamping tool-free via removable lamp front ring. Available in two different sizes. Adjustable version tiltable vertically 0-40° and rotatable horizontally 350°.
