Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

733LM

Finishing

ALUMINUM

IP Rating

IP20

Color Rendering

CRI>95

Driver

SPARK

RECESSED MAGNETIC TRACK LINEAR

INDOOR LIGHTING

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely.

FAGERHULT

LINEAR LIGHT

INDOOR LIGHTING

Connection

The luminaire is equipped with an access hole for cabling on the top. Knock-out at start luminaires short end for surface mounted mains cable. The luminaire unit is equipped with a through-wiring cable (5x2.5 mm²) and a snap-in connection in each end-cap.

Design

Luminaire body in natural anodised extruded aluminium finish.

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

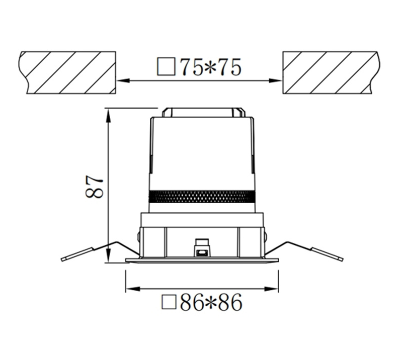

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 3 powerled LEDs. The device body is made of plaster and features a white finish; the diffuser is made of polyamide. The ingress protection degree is IP20; the total weight is of 1.1 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 90 x 160 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
