CDN LIGHTING

Single emission uplights for outdoor application. The super warm LED light source with a flood light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 233 lm, with a 145.6 lm/W nominal luminous efficacy. The device body is made of stainless steel and features a steel finish, processed by means of shot peening. The ingress protection degree is IP67,IK10.

Fixed and adjustable in one; When tilting at any angle, patented spherical shielding design helps prevent light leak and gap. Special moving gear tilt design provides stabilized torque for accurate tilt with sound and force feedback when rotating. Besides, Bach 5s series have pull ring equipped for easy maintenance and internal angle mark for accurate aiming. Professional optics, precise and round light spot.

LED pendant luminaire with direct light, made of high-quality extruded aluminium profile; black finish (RAL 9005) and chrome black reflector; GR6d-15 socket - reverse polarity protection and tool-free replacement without opening the; incl. illuminant DSD26-L120-830-BC as per ZHAGA Book 14; ON-OFF driver; 300-800mA; Dimension 1182mm x 45mm x 80mm; light color 3000K; good color rendering of CRI80; at least 80% of the luminous flux after a service life of 50000 hours L80B10; 5-year manufacturer's guarantee; Radiation characteristics with a beam angle of 80°; UGR<19 (up to 550mA); Luminance <1000cd/m² for gamma >= 65°according to EN 12464-1; Protection type of the housing IP20; Luminaire impact resistance IK05; can be installed as a single luminaire or as a continuous light band; 5 x 2.5 mm² through wiring; System luminous flux: 1895lm at 16W (118.4lm/W) @300mA (UGR<19), 2208lm at 18W (122.7lm/W) @350mA (UGR<19), 2455lm at 20W (122.8lm/W) @400mA (UGR<19), 2755lm at 22W (125.2lm/W) @450mA (UGR<19), 3097lm at 25W (123.9lm/W) @500mA (UGR<19), 3299lm at 27W (122.2lm/ W) @550mA (UGR<19), 3628lm at 30W (120.9lm/W) @600mA (UGR<22), 3884lm at 32W (121.4lm/W) @650mA (UGR<22), 4253lm at 36W ( 118.1lm/W) @700mA (UGR<22), 4449lm at 38W (117.1lm/W) @750mA (UGR<22), 4646lm at 40W (116.2lm/W) @800mA (UGR<22)

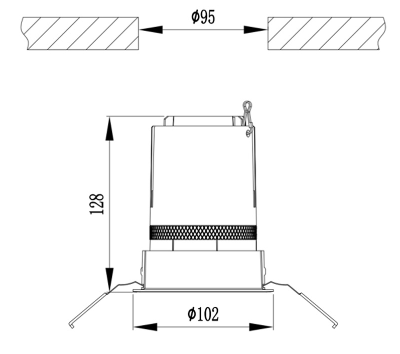

Surface mounted downlight luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.
