CDN LIGHTING

Sophisticatd optical systems able to considerably reduce glare thanks to the retracted position of the LED. Optical reflector in black polycarbonate combined with transparent methacrylate lenses (Versions with LED). The lathed anodized reflector is composed of HI-GRADE 99,98% pure anodized aluminium with a bright polish finish (Version with COB). Toughened acid-etched glass 8mm thick. Lamp fixed position. LOR --

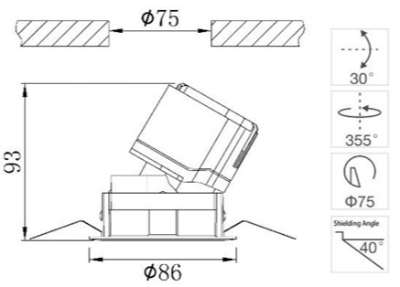

A square or rectangular-shaped mounting trim in cast aluminum with spring for trim installation or brackets for trimless installation on a ceiling thickness 6-15mm. Luminaire body inclusive of snoot in cast aluminum. Easy relamping via removable front ring by snap-in catch action,available in a configuration of 1, 2 or 3 LED light heads, extending the trim size and shape from square to rectangular. Tiltable in two directions up to 25°.

Light lines bendable in one direction (top view or side view) with a perfectly homogeneous and dot-free light surface for outdoor architectural lighting. Detailed specification text in download section. VENUS is a polyurethane encapsulated luminaire. Restistance and chemical stability against urban gases. With an efficiency up to 95 lm/W, VENUS stands out as one of the most efficient light line available to date. The various lumen output and a large panel of available CCTs turns VENUS into a modular lighting design toolkit. Fixture build to length (not field cutable): L = (N x 62.5 mm) + 26 mm; N = 3 ... 80; L = 213.5 mm: Nmax = 80; L = 5,026 mm. IP67.

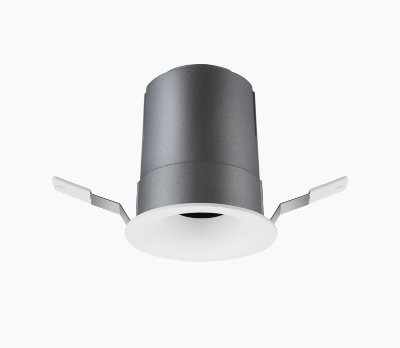

The Maxi Eclipse Mini Trim is a fixed, recessed downlight with a Ø120mm bezel and features a beautifully sculpted anti-glare baffle. The Maxi Is a high output downlight while still maintaining a surprisingly compact form. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.
