CDN LIGHTING

TA8 + LED Module

M4-9302013A-TA8-BBB

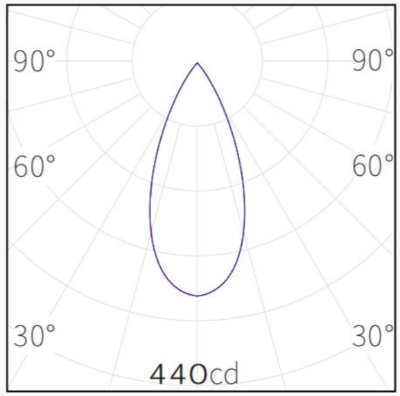

Round spotlight for recessed installation made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; 0-10V Dim Driver; LED 13W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; luminaire's weight is approximately 280g; rotation 355° and pivot max. 18°; CCT 3000K with an LED Output of 1400lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 20° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection IP20 (LED Module IP54)

The Maxi Eclipse Mini Trim is an adjustable, recessed downlight with a Ø120mm Bezel and features a beautifully sculpted anti-glare baffle. The Maxi Is a high output downlight while still maintaining a surprisingly compact form. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires. 360° rotation, 28° Tilt.

From residential to commercial applications, the Apex Surface Mounted Downlight is an unrivalled match with its practicality and efficiency, proving a perfect fit with a plethora of power, size and accessory options. A new chip in the Apex Series improves the performance of an already superior downlight.

Rectangular recessed multi-downlight made of die-cast aluminium; equipped with two (L2) / three (L3) individually selectable or pre-specified, customised light elements; installation without tools in mounting set with ball catch system; easy electrical installation by means of reverse polarity protected plug-in connections; suitable for ceiling thickness of 2-25 mm; surface powder coated; installation possible in different housings; high-quality reflector with micro-faceted.
