XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING

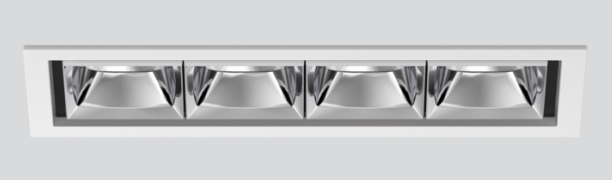

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due
to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling

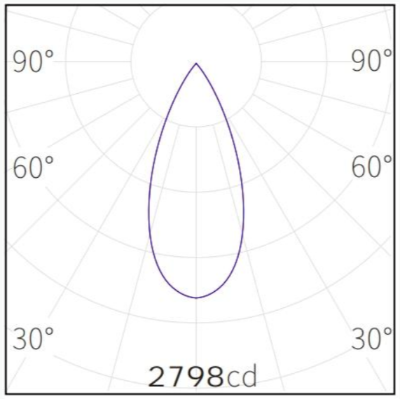

thickness of 2-25 mm; equipped with four narrow medium round light elements; symmetrical light distribution
with precise radiation characteristic, beam angle 22°; high quality reflector with micro-faceted, aluminumvaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light
colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating
hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl.
converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory;
accessories are listed separately; light source not replaceable; control gear replaceable by an authorized
professional; clank-free;
