CDN LIGHTING

RECESSED DOWNLIGHT
INDOOR LIGHTING

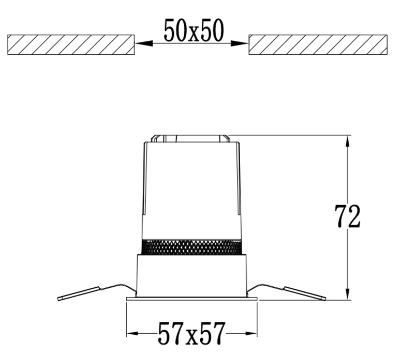

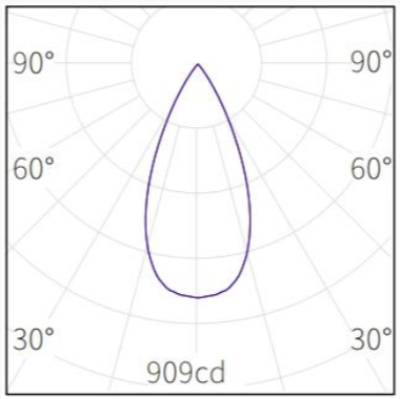

HS6050R 9W50D


Specification

Power
9W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
592LM
Finishing
ALUMINUM
IP Rating
IP20
Color Rendering
CRI>95
Driver

See more

LIGHTFORMS
RECESSED LINEAR LIGHT
INDOOR LIGHTING
Lightplane 1 Recessed Trim is a discreet, recessed fixture with a 25mm linear lens. Choose either a flat or tapered, chamfer aluminium trim. This small channel allows for minimal linear lighting in a recessed application. Driver is REMOTE.
SPARK
TRACKLIGHT
INDOOR LIGHTING

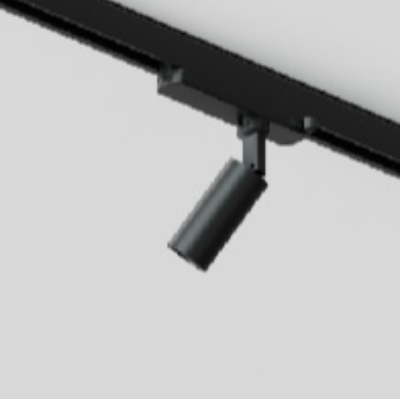

Surface mount track spotlight made of die cast aluminium housing and come with different diameter such as Ø55, Ø65, Ø70 and Ø75mm. Wattage from low 6W to 35W max. Fixture finishing available in Black or White color. Wide bean angles are avaiable. IP20
NEKO
RECESSED DOWNLIGHT
INDOOR LIGHTING
Trimless round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; System Power 13W; measurement Ø71mm; ceiling cutout of Ø75mm with a trimless mounting; luminaire's weight is approximately 220g; CCT 3000K with a System luminous flux of 550lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP44 (LED Module IP54) on the visible part of the product once installed; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
LUCE & LIGHT
FOOT LIGHT
OUTDOOR LIGHTING

Step light for outdoor applications; surface mounted (wall); Power consumption: 12W; Power supply: 230Vac; Lumen output at source: 1512 lm (3000K); Delivered lumen output: 736 lm (3000K, white finish); 36 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C); LED colour: 3000K; Optics: asymmetrical; Upward flux fraction: 5,32% (white, grey finish); 0,14 % (cor-ten, anthracite finish); CRI Colour Rendering Index: 80; Body material: body in die-cast aluminium; Finishes: anthracite; RAL finish on request; Screen material: screen in serigraphed extra-clear microprismatic glass; built-in power supply unit; includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm; Ingress protection: IP65; Impact resistance: IK08; Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: -20°C — +45°C; Dimensions: 209x101x32 mm.
