CDN LIGHTING

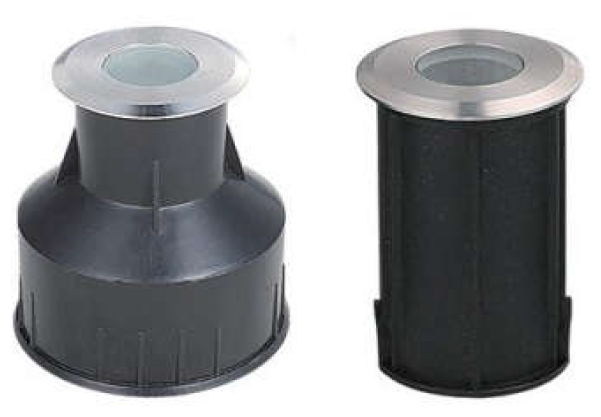

Single emission uplights for outdoor application. The super warm white LED light source with a spot light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 219 lm, with a 109.5 lm/W nominal luminous efficacy.

The device body is made of ot58 brass and features a chrome finish, processed by means of galvanic chromium plating. The ingress protection degree is IP67; the total weight is of 0.130 kg. The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 2 W. The power supply cable is included and features a 1 m length.

The device features protection class III and can be floor-mounted with an outer casing, code 84918(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.

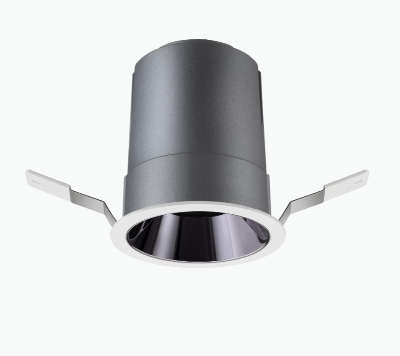

A series of premium recessed downlights available in various sizes, shapes, and finishing. Paired with ELR’s highly configurable LED modules, the Vasari downlight series offers a high degree of flexibility, aesthetics and functionally for the most discerning of applications

Customized classic bollard with dimensions LxWxH: 120 x 120 x 400

Rotatability 350°, pivotability 30° · Series compatible with each other, uniform cutout diameter · Weight: 0.67 grams · 2 powder-coated color options · RAL colors on request · Dimmability depends on the ballast · Direct light colors: optionally 2700K, 3000K, 3500K or 4000K. · CRI > 90 · MacAdam: 3 · IP protection type IP65 · Height: 122 mm · Diameter: 108 mm
