Products

BEGA

WALL LIGHT
OUTDOOR LIGHTING
31 060

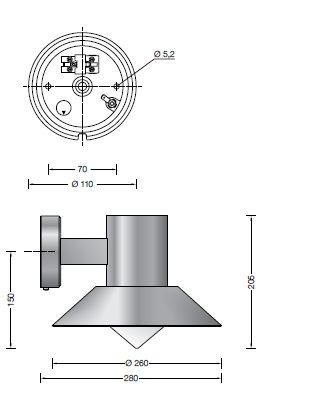

Luminaire made of copper and stainless steel. Opal glass with screw neck. Silicone gasket. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ Earth conductor connection. LED power supply unit, 220-240 V x 0/50-60 Hz DC 176-264 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, Impact strength IK05. Protection against mechanical, impacts < 0.7 joule, r – Safety mark, c – Conformity mark.

Specification

Power
LED 8W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
378 lm
Finishing
Eco Classic
IP Rating
IP44
Color Rendering
CRI>80
Driver
ON/OFF, 1-10V, DALI

See more

PHOS
RECESSED DOWNLIGHT
OUTDOOR LIGHTING
The Eclipse Mini Trim is a recessed, fixed downlight with a Ø86mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. 360° rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires
LOUIS POULSEN
BOLLARD
INDOOR LIGHTING
The fixture emits a wide downward directed glare-free light. The light source rests at the top inside the asymmetric carving on the side of the bollard, where the gradient serves as a reflector that softens the light and forms a pleasant organic shape on the ground below. The adapter is positioned externally from the fixture and can run up to six bollards. Maximum distance to last bollard is 30m. Length of enclosed cables: 5m. Spike: Uses standard cables and connectors which are supplied. Plug and play. Anchor/Base: Use installation cable for legal fixed installation. Adapter required installation by certified electrician. Width x Height x Length (mm) | 50 x 695 x 50 Max 3,0 kg | 50 x 345 x 50 Max 2,9 kg . Ingress protection w/spike: IP 65. Ingress protection w/anchor: IP 65 (Head), IP44 (Anchor). Ingress protection w/base plate: IP 65 (Head), IP44 (Baseplate). Electric shock protection III. IK06
SPARK
LINEAR DOWNLIGHT
INDOOR LIGHTING

Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.

LIGHTFORMS
SUSPENDED LINEAR LIGHT
INDOOR LIGHTING

Round Lightplane 1 features a slim, round channel that provides direct or indirect/direct linear lighting in both suspended and wall-mount applications. Channel can be rotated up to 360 degrees to aim the output. Driver is REMOTE.
