Product Detail | Bloxlimited

PROLICHT

RECESSED LINEAR LIGHT

INDOOR LIGHTING

SIGN TRIMLESS_380

Edgeless luminaire · Photometric cover: Opal (PMMA) · "KORONA FRAME" ·

"MATTER"- Standard · 3-pole terminal block · 240 Volt, 50/60 Hz · Direct light

colors: optionally 3000K or 4000K. · LED board coated with high-reflective material

· MacAdam: 3 · 50,000 hours lifespan · Flicker-free operation with suitable electronic

ballast · Light source can be replaced by professional staff. · IP protection type IP20 ·

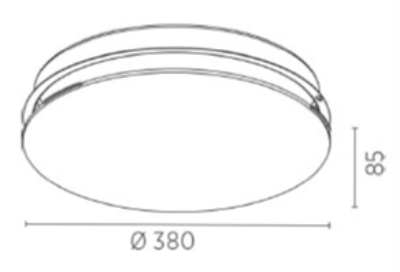

Electrical Protection Class 1 · complies with EN 60598-1 · · · · · · · · · · Height: 85 m

Specification

Power

21W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2363LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI>80

Driver

DALI DRIVER

MEYER

POLE LIGHT

OUTDOOR LIGHTING

Monospot pole luminaires in sizes 3 and 4 can be equipped with a Zhaga 18 connection socket. To this standardised interface, communication nodes for wireless control and monitoring are connected. Switch-on and switch-off times can be scheduled and light levels can be controlled flexibly via remote access. In addition, the status of each luminaire is monitored in real-time. Operators of public lighting systems benefit from efficient and cost-effective maintenance. The luminaires have integral DALI drivers with D4i standard.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with four wide flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

XAL

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Round spotlight element in aluminium; surface black powder coated; installation without tools in mounting set due to patented ball catch system; recessed light with wrap around edge; suitable for ceiling thickness of 2-25 mm; spotlight element height adjustable without tools: flush with the ceiling, or extended 25 mm or 35 mm; 360° rotatable and 90° tiltable; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows

SPARK

RECESSED MAGNETIC TRACK PENDANT

INDOOR LIGHTING

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Honeycomb accessory available upon request.
