BEGA

WALL LIGHT

OUTDOOR LIGHTING

31 190

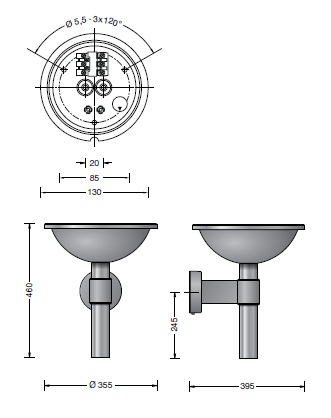

Luminaire made of copper and bronze alloy. Matt safety glass. Mounting plate with 3 fixing holes ø 5.5 mm. Angle 120° · Pitch circle ø 85 mm 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Connecting terminal 2.5@ with plug connection Earth conductor connection, LED power supply unit 220-240 V x 0/50-60 Hz. DC 198-280 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water. Impact strength IK10. Protection against mechanical impacts < 20 joule, r – Safety mark, c – Conformity mark.

Specification

Power

LED 29W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1826 lm

Finishing

Eco Classic

IP Rating

IP44

Color Rendering

CRI>80

Driver

ON/OFF, 1-10V, DALI

IGUZZINI

UP/DOWN WALL LIGHT

OUTDOOR LIGHTING

Wall-mounted luminaire with Warm White LED lamps - AF (Up) optic + AF (Down) optic. Consists of an optical assembly, a top glass, a bottom glass and a cover raster to be purchased separately. The optical assembly is made of an aluminium alloy, subjected to a multi-step, pre-treatment process in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer).

LUCI

LED STRIP

INDOOR LIGHTING

2 types of LED pitch (7.1 or 17.8mm) for profile and cove lighting. The 5 wattage options, ranging from 2 to 15W/m, utilize the same LED package to ensure consistent CCT. High efficient LED package achieving up to 185 lm/W

ENDO

RECESSED DOWNLIGHT

INDOOR LIGHTING

Recessed fixed downlight in matt black aluminium frame and black finish reflector. Cut-out 50mm. IP20

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Double emission ceiling lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 78 topled LEDs. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of pmma. The ingress protection degree is IP40; the total weight is of 21.11 kg. The device features protection class I and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.
