Product Detail
Home Products Detail

Products

CDN LIGHTING

RECESSED DOWNLIGHT
INDOOR LIGHTING

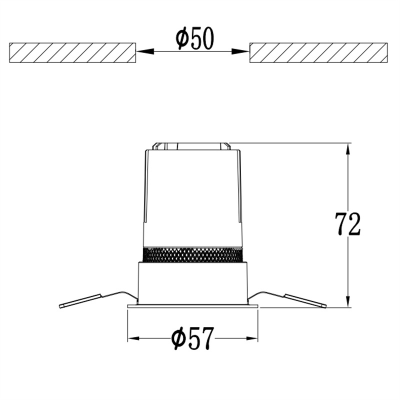

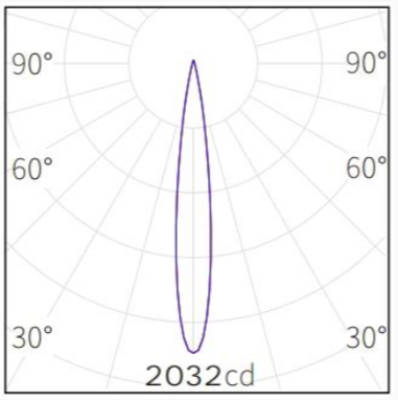

HS6050 5W15D


Specification

Power
5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
206LM
Finishing
ALUMINUM
IP Rating
IP20
Color Rendering
CRI>95
Driver

See more

MEYER
POLE LIGHT
OUTDOOR LIGHTING

Luminaire housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process. Housing color is black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket.  M16, connecting terminal: 5 pole, highly efficient faceted rotationally symmetrical reflector. The ingress protection degree is IP67, IK08. DIMENSIONS: Ø 148 mm, width 100 mm.

LINEALIGHT
PROJECTOR LIGHT
OUTDOOR LIGHTING

A single-emission projector with a super warm white 2700K LED (CRI 80) delivering 1265 lm at 140.6 lm/W. Made of AISI 316 steel with an electropolished finish and extra-clear tempered glass diffuser. IP68-rated, weighing 1.2 kg, with a 13W power consumption. Includes a 1m power cable, protection class II, and can be wall, ceiling, or floor-mounted. Compliant with EN 60598-1.

LINEALIGHT
PENDANT
INDOOR LIGHTING
Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 576 topled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 11,5 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 5 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
ILIGHT
CONTROL SYSTEM
CONTROL SYSTEM

The SCMR1220 is a key building block when specifying high power switching control. This 12 channel, feed through-latching relay controller enables lighting loads up to 20A to be switched. The twelve TV8 rated relays support resistive, capacitive, and inductive lighting loads, as well as non-lighting loads of any voltage up to 230VAC. The economical design of SCMR1220 provides a high density of channels in a small footprint, minimising the required space and cost of installation.
