Recessed rectangular luminaire with LEDs. Shaped steel sheet structural compartment with outer rim. The two linear elements with 15 lighting cells, in die-cast aluminium and independently adjustable, can be used to direct the emission with a tilting adjustability of +/- 20°. Metallised thermoplastic high definition optics, integrated in a rear position in the black anti-glare screen.

Wall luminaire front frame and back cover in die-cast aluminium with very low copper content. Wall fixing bracket in painted stainless steel. No visible screws. High luminous efficiency diffusing PMMA lens.  This allows to have a high interdistance installation between several fixtures while maintaining uniform illumination. The product is painted continuous two step paint process (epoxy-based primer + polyester base color finish) which allow to generate a single thick protective coating. IK08

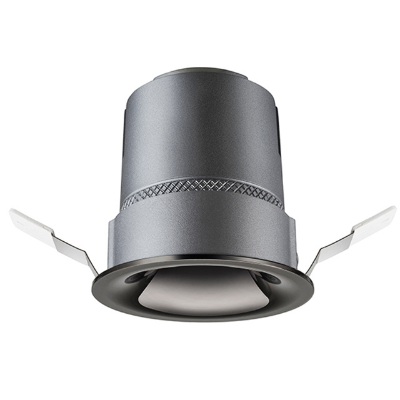

Single emission recessed downlights for indoor application. The super warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 1487 lm, with a 135.2 lm/W nominal luminous efficacy.The device body is made of uv resistant polycarbonate and features a white finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.3 kg. The power supply driver is not provided and is to be ordered separately.The total absorbed power is 11 W. The power supply cable is included and features a 0.15 m length.The device features protection class III and can be ceiling-mounted, with a 66 mm diameter hole (in plasterboard).Compliant with the EN 60598-1 standard and its specific provisions.

Dimensions (W x H) 24 x 40mm, 32.6 x 68mm (mounting bracket included)(diffused view)
