XAL

ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
SASSO 40 ADJ_048-2820414M 048-2896318 002-90753

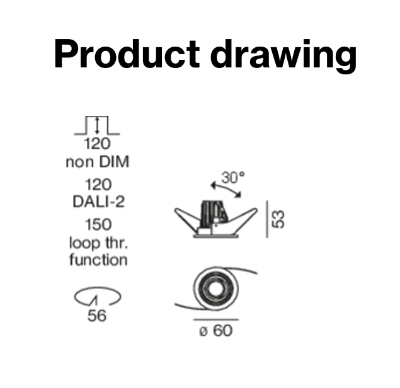

Round recessed spotlight in die-cast aluminium; surface matt silver; 360° rotatable and 30° tiltable; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 90; min. 85%

Specification

Power
6.2W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
389LM
Finishing
BLACK TRIM / SILVER REFLECTOR
IP Rating
IP40
Color Rendering
CRI 90
Driver
DALI DRIVER

See more

LINEALIGHT
WALL LIGHT
OUTDOOR LIGHTING
Double emission wall lights for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 2 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 1.99 kg. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
DELTALIGHT
SURFACE MOUNTED DOWNLIGHT
INDOOR LIGHTING

Surface mounted, pendant luminaires, available in cubic and cylindrical shaped. Though different in shape, still uniform in look, as both shapes have a deeper recessed LED module with a conical, coloured insert in front. While the deeper recessed LED module reduces the glare, the choice in colour creates possibilities for playful and attractive lighting solutions. Alongside the different shapes, this family offers indoor and outdoor luminaires, a perfect solution when recessing is not an option. Furthermore, the WDL versions of Boxy are standalone luminaires for an easy wireless CTRL Delta lighting set-up.

LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING

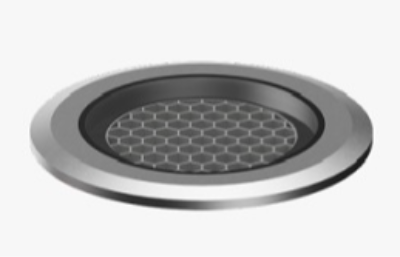

Suelo is an uplight designed for outdoor lighting, capable of satisfying any design intent. Available in fixed and adjustable versions, with a variety of different outputs and optics. The aluminium body and the AISI316L stainless steel flange make this uplight resistant and durable.
WE-EF
SURFACE MOUNTED LIGHT
OUTDOOR LIGHTING
Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering. Luminaire can be mounted for up or down lighting.
