MCI

HANDRAIL LIGHT
OUTDOOR LIGHTING

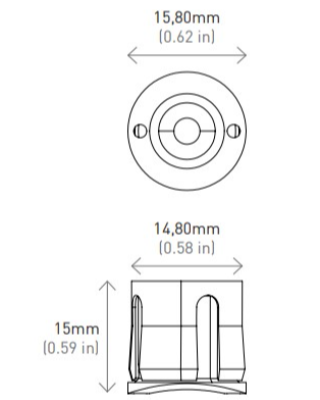

HANDRAIL DOT GEN2_100D

Outdoor handrail light Dot designed to be integrated in new or retrofitted handrails. Easy and quick installation due to snap-in fit system IP66, IK10 and anti-tamper design. Ideal for outdoor applications. Chrome brass unibody dot with polycarbonate lens. IP66, IK10


Specification

Power
1.5W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
174LM
Finishing
CHROME BRASS
IP Rating
IP66
Color Rendering
CRI80
Driver
ON/OFF DRIVER

See more

LINEALIGHT
SURFACE TRACKLIGHT
INDOOR LIGHTING
Single emission projectors for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.920 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

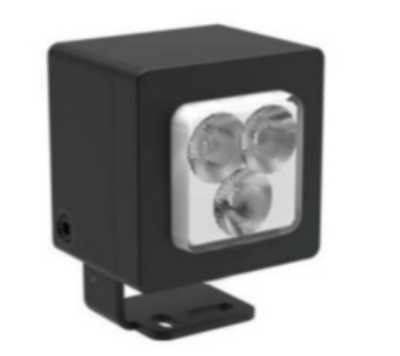

SPARK
FLOODLIGHT
OUTDOOR LIGHTING

Unique mini square-shape structure design, Aluminum alloy housing, Multiple light distribution options, Zero luminous depreciation at 3000hrs, long lifespan with low power consumption, 70-80 energy-saving, and environmental friendly, Various installation bracket optical accessory options, Easy for installation, replacement and maintenance, Compact design for versatile use in the outdoor applications, such as ancient building, temple, small town, etc.

DIMENSION : 59.4*59*86.5MM

MEYER
SPOTLIGHT
OUTDOOR LIGHTING
Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket powder coated aluminum with tilt scale: 2 drilled holes Ø 7 mm, spacing 40 ‑ 60 mm, 1 centre hole Ø 21 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 22°, luminous flux: 1445 lm, wattage: 55 W, delivered lumens 26 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.
SPARK
SUSPENDED DOWNLIGHT
INDOOR LIGHTING
Suspended mount downlight luminaire body made of aluminium housing with black powder coated finish. Come with 1m hanging rod. Black finish and honeycomb accessory available upon request.It come with different types of bean angles.
