Product Detail
Home Products Detail

Products

TRAXON

FLOODLIGHT
OUTDOOR LIGHTING
XB.W8.8370120.5

The Allegro Washer AC SW is an intelligent, AC line powered high brightness luminaire family. The fixture is controllable via DMX512. The simplicity of the luminaire’s topology means it can be easily daisy-chained to form long runs. Remote Device Management (RDM) circuits are built into each luminaire that enables extensive control and monitoring of the entire lighting installation.

Specification

Power
150W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
9546LM
Finishing
BLACK
IP Rating
IP66
Color Rendering
CRI>80
Driver

See more

CDN LIGHTING

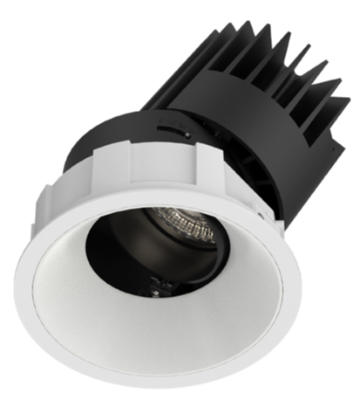

RECESSED DOWNLIGHT
INDOOR LIGHTING


TARGETTI
RECESSED DOWNLIGHT
INDOOR LIGHTING

Black painted die cast aluminium body and heat sink. Paaive dissipation system

WE-EF
INGROUND UPLIGHT
OUTDOOR LIGHTING

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 1.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. 20° tiltable and 355° rotatable. 1-10 V analogue dimming or DALI interface available on request. Luminaire installation blockout and sealable junction box included in supply.

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a diffused light distribution is composed of 240 stripled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of silicone resin. The ingress protection degree is IP66; the total weight is of 0.640 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.220 m length. The device features protection class III and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.
