SPARK

"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process: 3 Step Process: 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09 Maximum load capacity 1000 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

LED pendant luminaire with direct light, made of high-quality extruded aluminium profile; black finish (RAL 9005) and chrome black reflector; GR6d-15 socket - reverse polarity protection and tool-free replacement without opening the; incl. illuminant DSD26-L120-830-BC as per ZHAGA Book 14; ON-OFF driver; 300-800mA; Dimension 1182mm x 45mm x 80mm; light color 3000K; good color rendering of CRI80; at least 80% of the luminous flux after a service life of 50000 hours L80B10; 5-year manufacturer's guarantee; Radiation characteristics with a beam angle of 80°; UGR<19 (up to 550mA); Luminance <1000cd/m² for gamma >= 65°according to EN 12464-1; Protection type of the housing IP20; Luminaire impact resistance IK05; can be installed as a single luminaire or as a continuous light band; 5 x 2.5 mm² through wiring; System luminous flux: 1895lm at 16W (118.4lm/W) @300mA (UGR<19), 2208lm at 18W (122.7lm/W) @350mA (UGR<19), 2455lm at 20W (122.8lm/W) @400mA (UGR<19), 2755lm at 22W (125.2lm/W) @450mA (UGR<19), 3097lm at 25W (123.9lm/W) @500mA (UGR<19), 3299lm at 27W (122.2lm/ W) @550mA (UGR<19), 3628lm at 30W (120.9lm/W) @600mA (UGR<22), 3884lm at 32W (121.4lm/W) @650mA (UGR<22), 4253lm at 36W ( 118.1lm/W) @700mA (UGR<22), 4449lm at 38W (117.1lm/W) @750mA (UGR<22), 4646lm at 40W (116.2lm/W) @800mA (UGR<22)

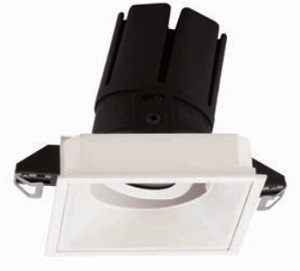

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of PC, processed by means of coating. The ingress protection degree is IP20; the total weight is of 1.35 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.3 m length. The device features protection class III and can be ceiling-mounted, with a 180 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

EDGE is a wall light made with our refractory materials perfect for outdoor conditions. The light can be positioned as required, whether it be to point up, down, left or right. The architectural effect is enhanced by the material selected. There is a choice of LED onboard or retro fitted GX53 lamps.
