PROLICHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

22260

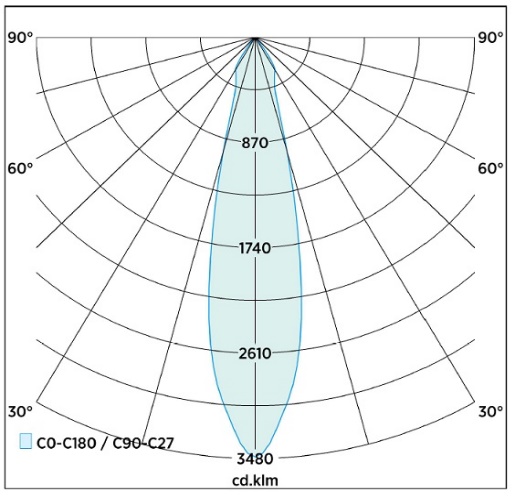

The recessed spot OIKO from the familiy OIKO consists of aluminum-die-cast. The article can be powder coated in 25 colours. Stated photometric values correspond to operation by 700 mA; a suitable ballast needs to be sourced separately and is not scope of delivery. Dimming (# 22260) depends on the used ballast and may vary. The spot with direct illumination corresponds to protection class SK3 at IP20. ZERO LIGHT LEAKAGE technology guarantees trouble-free use in acoustic ceilings.

Specification

Power

LED 24 W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

3290 lm

Finishing

Sparkling silver

IP Rating

IP20

Color Rendering

CRI 90

Driver

Driver - on/off, 1-10V, Dali

DALITEK

CONTROL SYSTEM

The artIO is a comprehensive integration module for the Artistic Licence cueLumen series. artIO serves two purposes, as a system integration module for the artCore or cueLumen core and as an artUI gateway, allowing the expansion of a system to unclude more than 16 artUI user interfaces. The setup is all handled via the artCore processor or cueLumen core. As a system integration module the artIO provides Serial 485 and RS232 integration, along with enabling the connection of 2 volt free inputs an

XAL

RECESSED DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with two medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

XAL

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Cylindrical semi-recessed spotlight made of aluminium; surface black/black (housing/light inset); 360° rotatable and 30° tiltable; luminaire housing can be attached to mounting plate without tools by interlock; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed adjustable square downlight with snoot and luminaire body made of aluminium housing with white powder coated trim finish. Black finish and honeycomb accessory available upon request.
