LUCE & LIGHT

WALL LIGHT
OUTDOOR LIGHTING

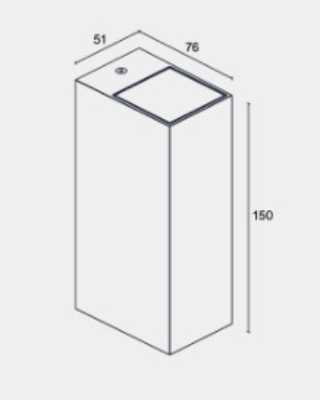

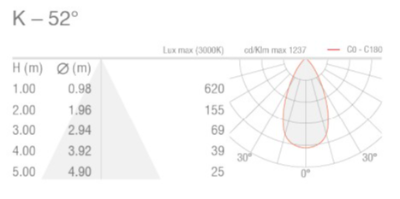

TM21001000F0KE

Wall mounted for outdoor applications, single beam; surface mounted (wall); Power consumption: 7W; Power supply: 24Vdc; Lumen output at source: 795 lm; Delivered lumen output: 501 lm (52°, 3000K); 1 COB LED, 2-step MacAdam, 60 000h L80 B10 (Ta 25°C); LED colour: 2700K; Optics: 52°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter; CRI Colour Rendering Index: >90; Body material: body made of low-copper-content die-cast aluminium alloy

Specification

Power
10W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
501LM
Finishing
WHITE
IP Rating
IP65
Color Rendering
CRI >90
Driver
ON/OFF DRIVER

See more

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher flood light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98673 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
CEILING LIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 537 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of plaster and features a white finish; the diffuser is made of polyamide. The ingress protection degree is IP20; the total weight is of 0.500 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 160 x 90 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
LIGHTFORMS
SUSPENDED LINEAR LIGHT
INDOOR LIGHTING

Lightplane 6 is a large, linear luminaire that provides direct or indirect illumination in suspended, wall and surface-mount models. The luminaire features an integral driver along with a high impact satin diffuser. Available with several LED lamping options including multiple outputs, CCTs, tunable white, and color-changing RGB+ White.

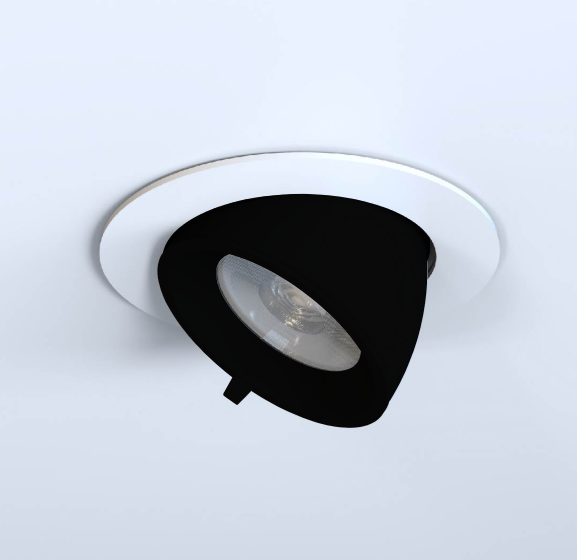

PROLICHT
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Rotatability 350°, pivotability 30° · Series compatible with each other, uniform cutout diameter · Weight: 0.30 grams · 2 powder-coated color options · RAL colors on request· Dimmability depends on the ballast· CRI > 90 · MacAdam: 3 · Beam widths: "Flood", "Medium", "Spot/Superspot" · IP protection type IP65 · Height: 95 mm · Diameter: 82 mm
