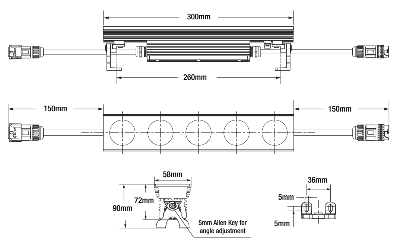

ProPoint Linear SO Static 15

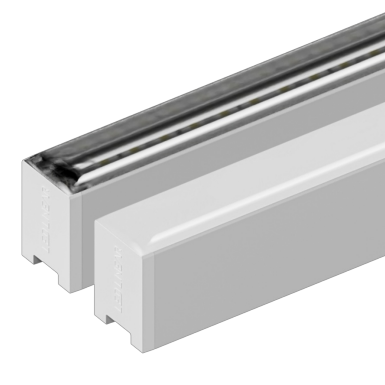

The ProPoint Linear Static White + Color is an AC Line powered luminaire in a slim profile. The ProPoint Linear is available in 8W (SO) or 12W (HO) per foot output, 4 beam options, standard & custom finishes which can meet the needs for most projects. The daisy chain topology is augmented with a separate Data Injector allowing single cable feed combining data and power to fixtures.

Specification

Power
8W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
661.12LM
Finishing
GRAY
IP Rating
IP66
Color Rendering
CRI>80
Driver

See more

CUSTOMIZED
PENDANT
INDOOR LIGHTING

Customized: Project Big C Pattaya3 (Big C Store- counter Seafood). Bulb dimension : 64 mm. x 140 mm.

LIGHTFORMS
UP/DOWN WALL LIGHT
INDOOR LIGHTING
A compact and versatile cylindrical light source with a huge range of optical options. This including an indirect lighting option, which despite expectation is perfectly even on the ceiling. The construction is an extruded aluminium housing packaged with either optic, reflector or LED engine but always in the classic and clean cylindrical form. Control gear is mostly integral and the full range of extras is available - sensors (CP, Simmtronic, Hytronik, Tridonic + Others), emergency, daylight harvesting, Casambi, Power over Ethernet (PoE) & many other integrated additions.
SPARK
SURFACE MAGNETIC TRACK LINEAR
INDOOR LIGHTING

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely.

SPARK
TRACKLIGHT
INDOOR LIGHTING

LED Central linear light with twin wings tilting linear light system can be flexibly combined with track spotlights on the same track rail for general lighting & accent lighting. Ultra slim delicate design and flexible rotation for wall washing. It come in 3-wire, 4-wire and 6-wire surface / suspension track. Various of beam angle available.
